Parameters & Events in 5G Logs

sadanandk2 March 4, 2021, 9:21pm 65

Exactly what I am saying too.

sadanandk2 March 4, 2021, 9:32pm 66

There are only events in NR NSA.
Based on these events MeNB decides SCG addition/release.

sadanandk2 March 4, 2021, 10:08pm 67

I checked all your L3 msgs, and as explained above, there can be NO handover between n1 and n78.
Only addition/release based on B1 and A2 respectively.

Cesar_Nunes March 4, 2021, 10:09pm 68

Thank you guys.
I did other test here.

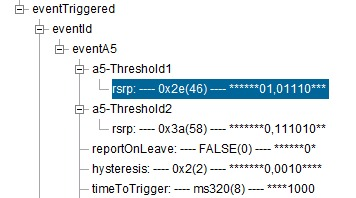

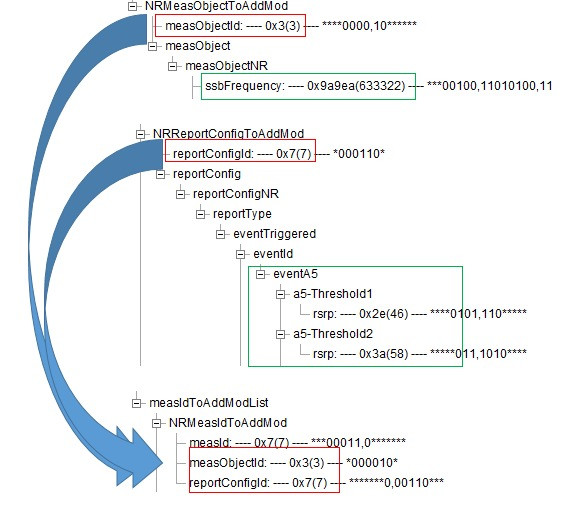

Look that now I have Event A5 (Inter-Frequency) in NR.

Look…Event A5 (Inter-Frequency) to NR78.

sadanandk2 March 4, 2021, 10:10pm 69

This event is for SCG change (release/add).

eta004 March 4, 2021, 10:10pm 70

Yes correct, Spcell change not Handover.

Cesar_Nunes March 4, 2021, 10:11pm 71

Yes.

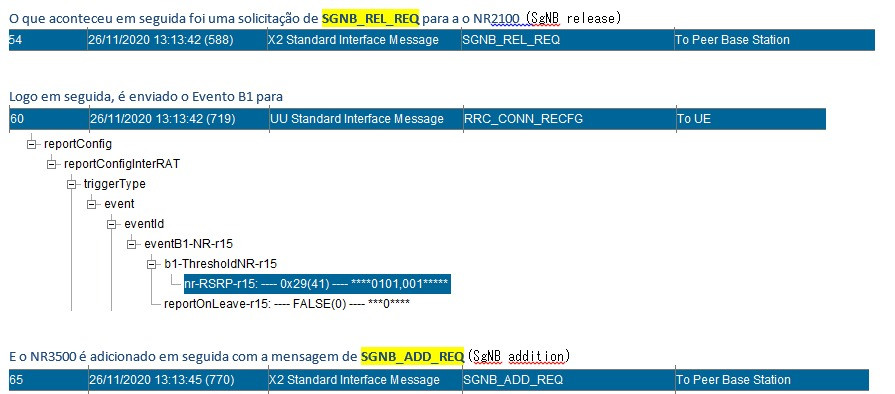

Look the msg=54.
SCG Rel to NR2100 and after msg=65, SCG Additional to NR3500.

eta004 March 4, 2021, 10:12pm 72

Great!
Hope your doubts are clear.
Using of the word 5G Handover in NSA is a crime.

Cesar_Nunes March 4, 2021, 10:12pm 73

But eventA5 can be used to Inter-Frequency, am I right?

techieambitious March 4, 2021, 10:15pm 74

Why can’t we say pscell change as HO?

sadanandk2 March 4, 2021, 10:16pm 75

In NSA mode, if anchor is LTE, NR handovers are not performed.
How can we say Pscell change to Handover?

If anchor is NR then 5G handovers are possible. (This is my guess)

eta004 March 4, 2021, 10:17pm 76

Yes it is correct as signalling will be through 5G mgnb.

sadanandk2 March 4, 2021, 10:17pm 77

In carrier aggregation of LTE also, scell add /release /change happened.
We never call it as HO.
Because PCell is same.
Similarly on NSA as long as MeNB is same, its not handover irrespective of Pscell change

eta004 March 4, 2021, 10:18pm 78

Then we should call CA cell change as Handover.
We should follow 3gpp.

sadanandk2 March 4, 2021, 10:19pm 79

Exactly.

techieambitious March 4, 2021, 10:19pm 80

I am still having doubt…
Why HO with anchor LTE not possible between 2 pscell?

Cesar_Nunes March 4, 2021, 10:21pm 81

OK, Guys, solved!
Thanks.

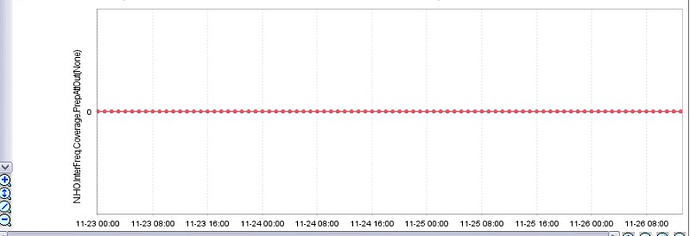

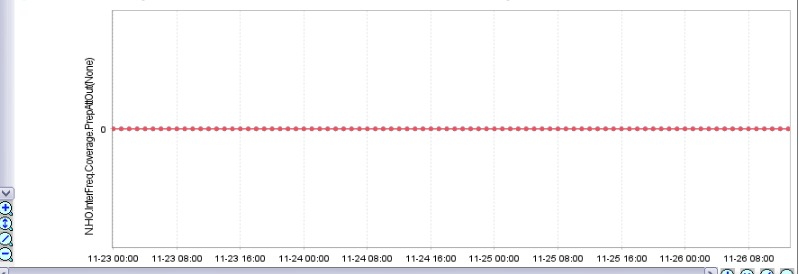

I Looked the counter and there is no HO (obviously).

Event A5 is only dispatched if A2 fires first, correct?

eta004 March 4, 2021, 10:21pm 82

This: A2+A4 = A5.

eta004 March 4, 2021, 10:23pm 83

Simply think that handover between 2 cells need to be through direct control plane signalling first so in NSA option 3x there is no way of control plane handover preparation possible b/n 2 5G scgs .

Only lte menb handles control plane and all it can do is based on A2 or B1 events scg add or release . This can’t be categrized underHO[quote=“ankgitm, post:80, topic:10988”]
Why HO with anchor LTE not possible between 2 pscell?
[/quote]

Simply think that handover between 2 cells need to be through direct control plane signalling first.
So in NSA option 3x there is no way of control plane handover preparation possible b/n 2 5G scgs .

Only lte menb handles control plane and all it can do is based on A2 or B1 events scg add or release . This can’t be categrized under HO.

techieambitious March 4, 2021, 10:23pm 84

Do you mean there is no A3/A5 events in NR?
