Why 2 RE per Port is required if more than 2 CSI RS Port are configured?

RAN
1

Hi Experts,

If CSI RS Port > 1 than we need to define 2 RE per Port.
Why 2 RE per Port is required if more than 2 CSI RS Port are configured?

2

I guess it is to provide orthogonality in frequency/time.

3

But in same antenna port why we need orthogonality.

4

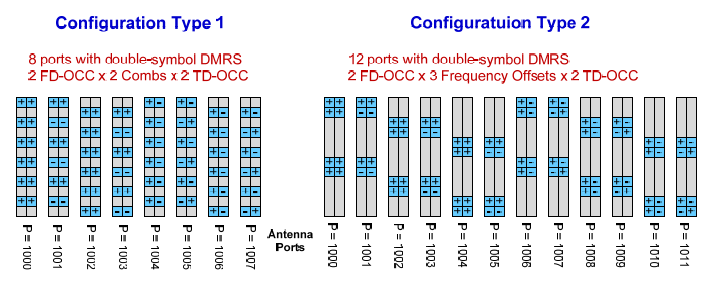

Sometimes is better to view a picture than try to explain, lol!

image706×287 20 KB

From:

http://www.sharetechnote.com/html/5G/5G_PDSCH_DMRS.html
