What is Single Cable MIMO for indoor solutions?

4G LTE
1

Dear experts!

Could you tell please, how single-cable MIMO solutions works?
I know that it is requires to install special unit which will use frequency shift to put 2 MIMO signals into one indoor coax cable.
But how it works in reality? strong text

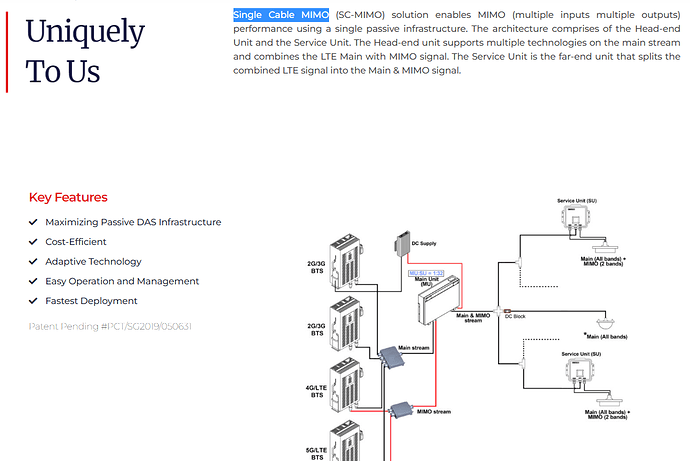

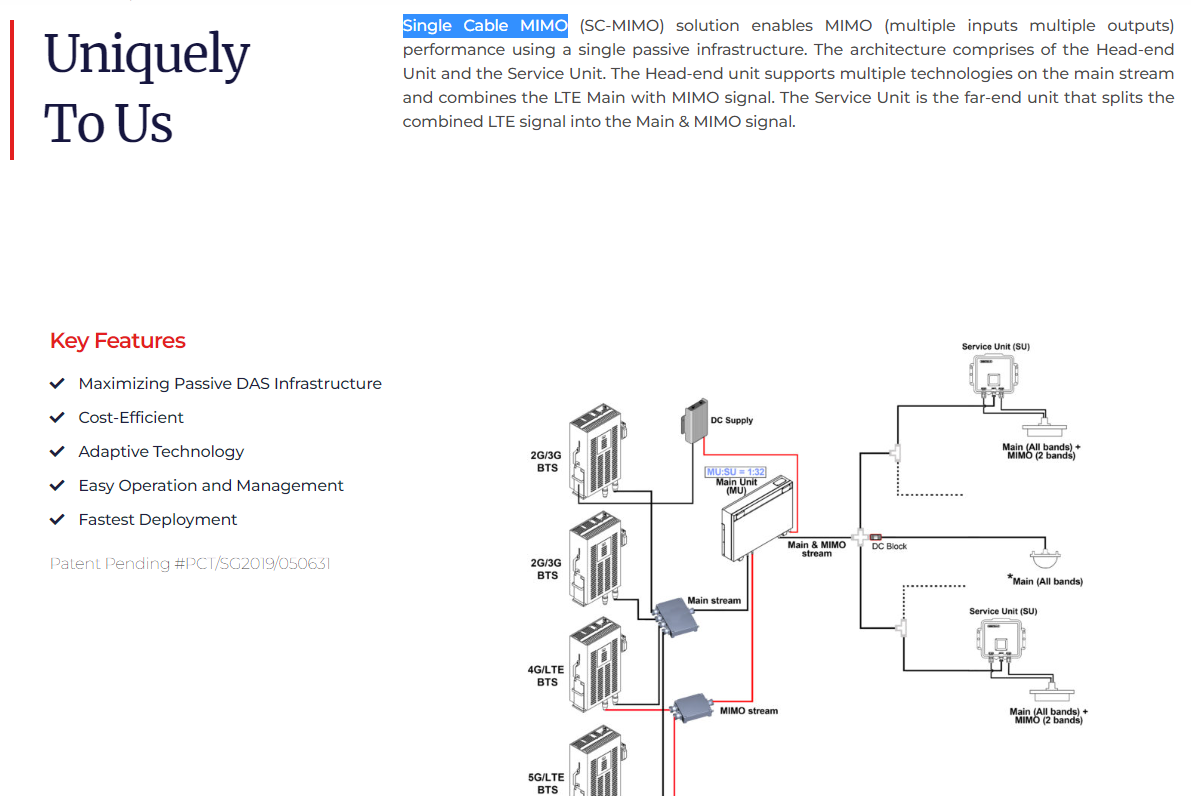

image1191×796 158 KB

1 Like
2

can you share more info regarding the HW required? and which vendor?

3

Vendors mostly from China, for example Beijin TongTech.
HW:

  1. 1 unit which transform 2 feeder MIMO cable into 1 (somehow with freq. shift)
  2. 1 DC-coupler
  3. and change passive antennas to special antennas
    That’s basically all.
1 Like
