Unit of Downlink Full-Bandwidth CQI in Huawei 5G NSA Cell Trace

ramin_sabzalizade · February 3, 2025, 10:37am

Hello experts,

In the Huawei 5G NSA cell trace, there is a downlink full-bandwidth CQI. Does anyone know its unit?

Measurement:

RFSpecialist · February 3, 2025, 10:38am

CQI has no unit.

A value of 15 indicates excellent quality, while 1 represents very poor quality.

JoseMiguel · February 3, 2025, 10:38am

Yes, CQI is an index.

ramin_sabzalizade · February 3, 2025, 10:39am

Hi, I understand, but I’m specifically referring to the Huawei trace file.

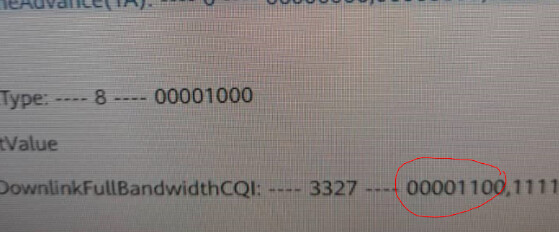

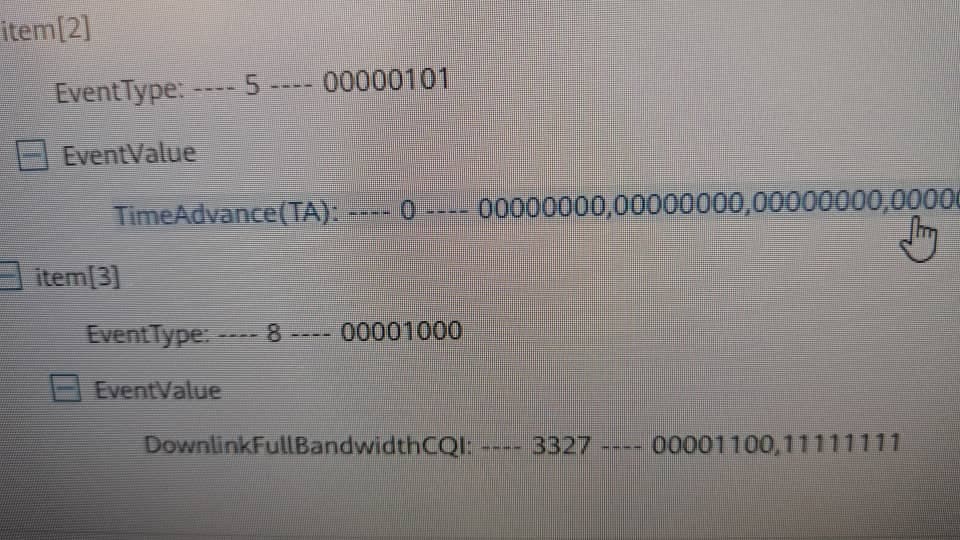

I’m talking about the last item in this picture, which appears in the internal 5G NSA message.

RFSpecialist · February 3, 2025, 10:40am

It appears to be CQI reported with a value of 12.

ramin_sabzalizade · February 3, 2025, 10:40am

Is there a specific formula for this?

RFSpecialist · February 3, 2025, 10:41am

1100 means 12:

ramin_sabzalizade · February 3, 2025, 10:42am

I guess you’re right. Thanks!
