Understanding of Default and Dedicated Bearer in LTE

4G LTE
1

Understanding of Default and Dedicated Bearer in LTE.
Experts can comment further.

  1. UE always have 1 default bearer which is non gbr.
  2. For same APN other bearers are dedicated which can be gbr or non gbr.

Queries:

  1. How many max dedicated bearer per UE, per APN?
  2. Can we say EPS barer id same for default and dedicated bearer if both configured for same UE?
1 Like
2

EPS bearer ID is different for each bearer (generally 5-QCI9, 6-QCI5, 7-QCI1).

1 Like
3

Ok, so it mean if 1 UE having 2 bearer one default and one dedicated, then EPS bearer ID different for both?

1 Like
4

Yes, correct.

1 Like
5

Ok thanks :+1:
And what max value per UE?

1 Like
6

I don’t have exact idea about max limit, but I don’t think there is any limitation.
Whatever bearer configured in the system, UE can support it?

1 Like
7

I would say 31, based on lcid.
But have never tested more than 8.

1 Like
8

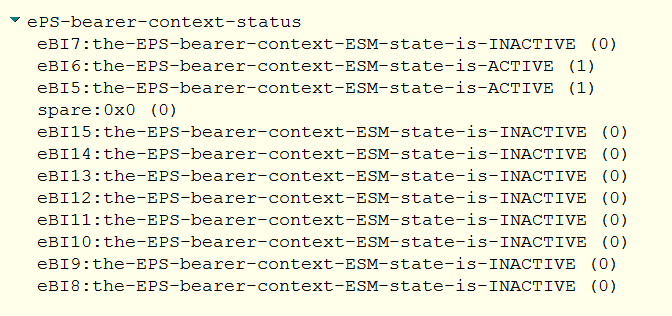

maximum 11 EPS bearer: 5 -> 15

1 Like
