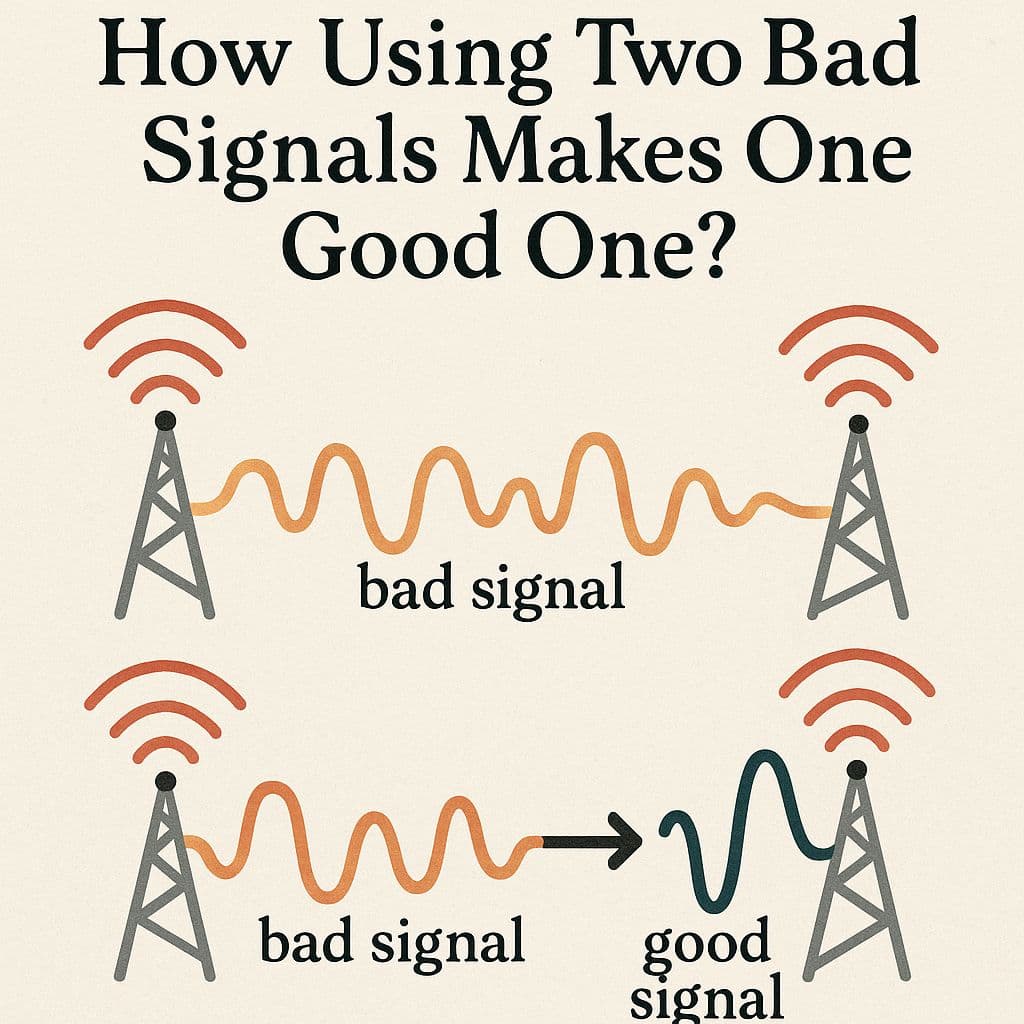

The Diversity Trick: How Using Two Bad Signals Makes One Good One?
You’ve probably seen it: your phone shows poor signal bars yet the call stays clear. Or a Wi-Fi router keeps streaming smoothly even with multipath fading. That’s not magic – that’s diversity. Wireless systems take multiple imperfect versions of the same signal and combine them intelligently, turning chaos into clarity.
-
Why One Signal Isn’t Enough
A single radio path is unreliable. Reflections, diffraction, motion – all cause fading and deep nulls where signal power drops unpredictably. But fading isn’t identical across space, time or frequency. If you receive multiple independent versions of the signal, at least one tends to stay strong. Diversity uses this randomness and adds redundancy to beat physics. -
How Two Weak Signals Become Strong
In spatial diversity, two antennas separated by a few wavelengths see different fading patterns. Frequency diversity spreads data across multiple subcarriers or channels. Time diversity repeats symbols at different moments when conditions change. The receiver then combines these using maximal ratio combining (MRC) or equal gain combining (EGC) to rebuild a clean, high-SNR signal even if each copy was noisy. It’s like averaging several blurry photos to get one sharp one. -
Why Designers Care
Modern systems (LTE, Wi-Fi, 5G) depend heavily on diversity. MIMO is diversity on steroids – multiple antennas at both ends creating parallel, independent paths. The result: more reliability, fewer dropouts and higher throughput without raising transmit power. In radar and satellites, polarization diversity keeps links alive when one polarization fades due to rain or orientation shifts. Diversity isn’t wasted redundancy – it’s statistical insurance. -
Critical Formulas
a) Combined SNR (MRC):
γ_total = Σ γᵢ
b) Probability of deep fade (Rayleigh):
P(γ < γ₀) = 1 − exp(−γ₀ / γ_avg)
c) Diversity order (L branches):
P_out ∝ (γ₀ / γ_avg)ᴸ
d) Frequency diversity (Δf > coherence bandwidth):
ensures independent fading. -
Real-World Examples
- A 2×2 MIMO Wi-Fi router combines spatially diverse signals to improve reliability in multipath-heavy rooms.
- Cellular base stations use polarization diversity (vertical + slant ±45°) to reduce rain and orientation fade.
- Satellite downlinks use dual-frequency diversity (Ka + Ku bands) to survive rain fade.
- Vehicle communication systems use time diversity to keep packets alive during fast fading caused by reflections.
In wireless design, diversity is the quiet genius – not stronger signals, just smarter combinations. Sometimes two weak paths are enough to make one reliable connection.
