Step by step procedure to design/analyze the Refelectarray unit cell and S curve with CST MW Studio

Hi Experts.

In this video the following items are captured:

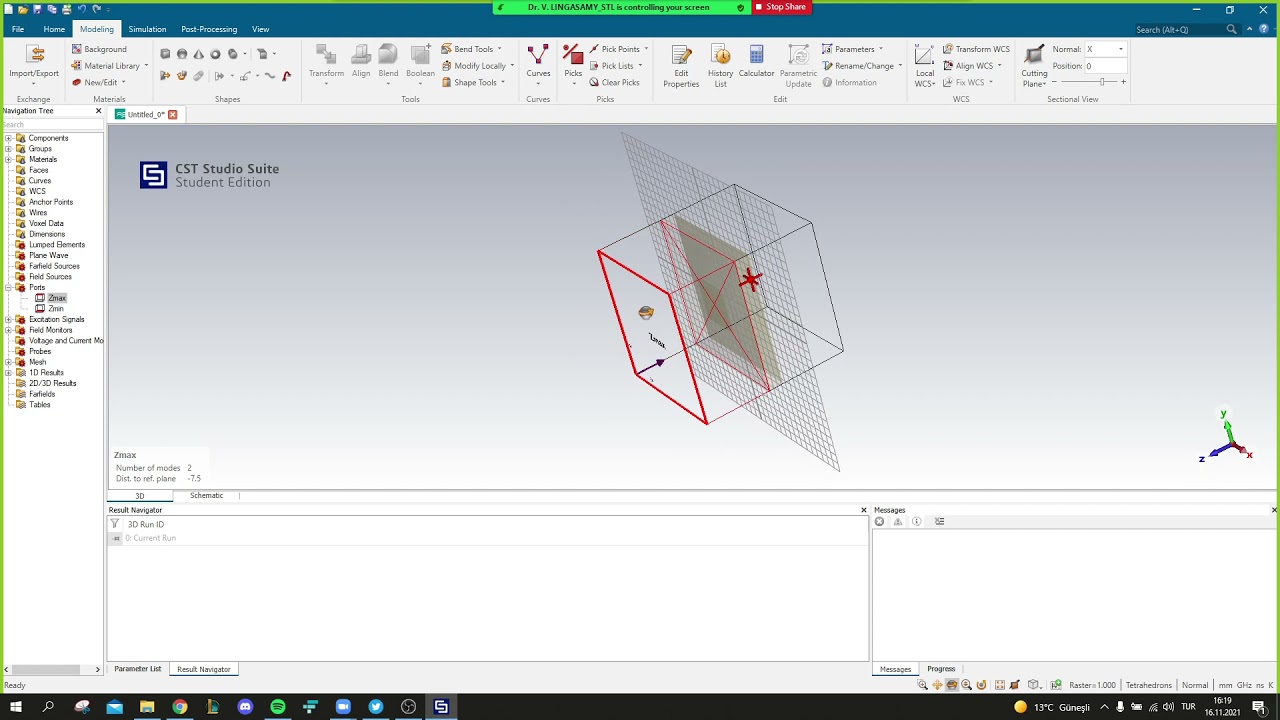

  1. Design (Modelling) of the unit cell using CST Microwave Studio
  2. Boundary conditions - unit cell/periodic (infinite array approach) with frequency domain solver and TEM waveguide (isolated element approach) with time domain solver
  3. Usage of frequency domain and Time domain solvers
  4. Estimating the phase as a function of frequency
  5. Estimating the phase as a function of geometrical dimension of the unit cell
  6. How to unwrap the phase values to get S curve
  7. Distance to reference plane
  8. Parametric study and post processing of the results to estimate the phase vs element dimension
