Hello All.

If you have the option to choose between 2 projects implementation on 4G:

  • Split sectors - meaning a 3 sector sites becomes a dual beam 6 sectors site on each band
    Or
  • 4x4 MIMO on the 3 existing sectors of the 2 bands

Which one will bring a better gain?

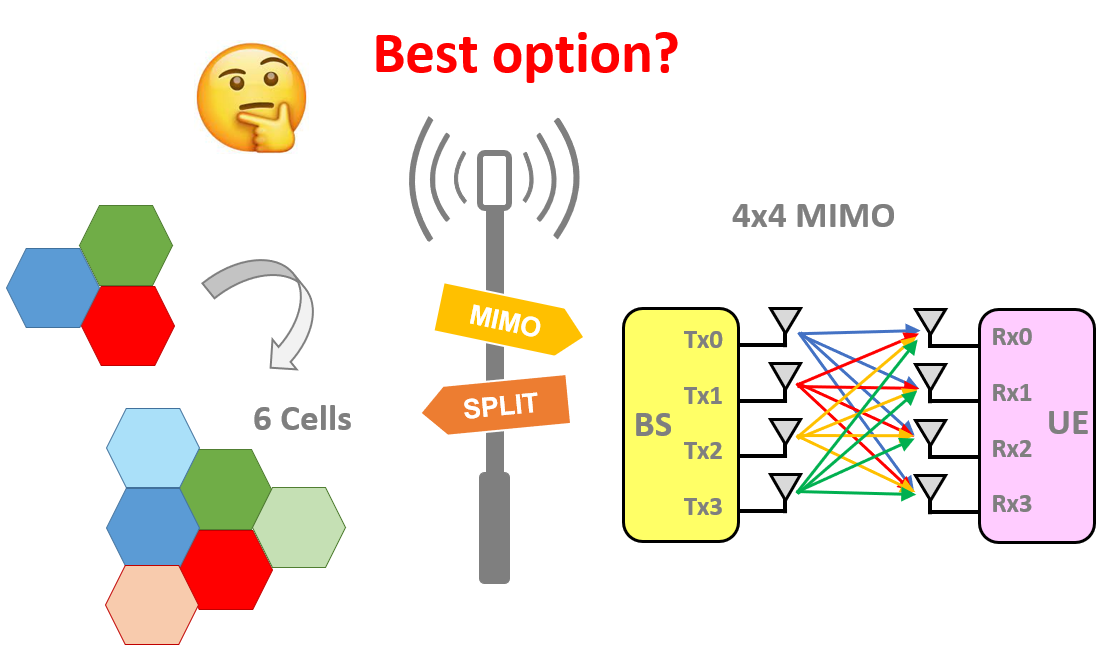

Split sectors vs 4x4 MIMO
Split sectors vs 4x4 MIMO1106×668 74.5 KB

1 Like
2

This is better coverage / higher GB consumption and cost effective.

1 Like
3

Yes in my opinion too: using spilt sector you will have a better coverage.

1 Like
4

But the throughput will be lower in comparison with 4x4 MIMO.

1 Like
5

It depends on your needs and UE penetration with MIMO4x4 support.
If everything is fine with coverage and your network has many UE with MIMO4x4 support it could be a good reason to go with that solution.

1 Like
6

Here we have 6-8 Sector 4x4 Mimo with 3/4 Physical sectors but downside is heavy interference
