Dear Experts.
Is there a quick moshell command to check vswr values else than cable and invxrf in Ericsson?
1 Like
hget rfport=(a|b|c|d) vswr
Hget rfport vswrvalue
hget rfport vswr|dlfreq

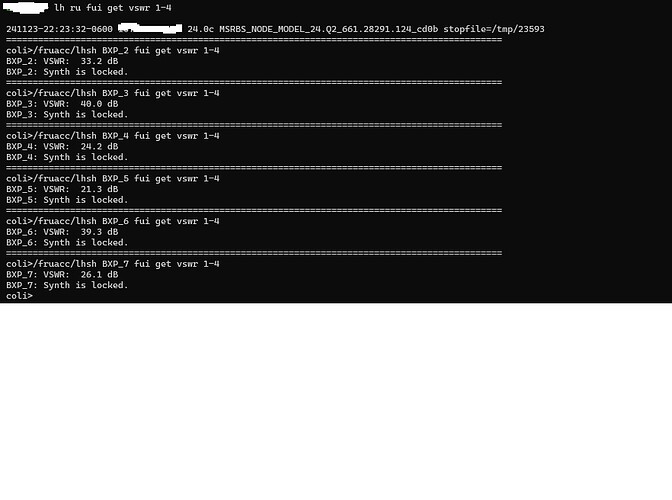

lh ru fui get vswr
lh ru fui get devstat
1 Like
You can try with these:
lh ru fui get vswr
get . vswr
mfa (You can see the RF Banch)
sdi (you can see also vsrw, and other possible connection issues on site )
I remember cabx probably the obsolete one.
invxr was the new one.
Hi, the fastest way to use coli commands from ssh.
How ? Any example please
Baseband 6630 LTE 4x4 MIMO B2,B4:
LXXXX> lh ru fui get vswr_mb all
241124-15:00:42-0600 10.XXX.XXX.XXX 24.0c MSRBS_NODE_MODEL_24.Q2_661.28291.124_cd0b stopfile=/tmp/3898
Checking available boards on node...
Collecting RCS board data ...
.......................................................................
.................
=============================================================================================
coli>/fruacc/lhsh BXP_2 fui get vswr_mb all
BXP_2: VSWR measurement (port A, Band25): 25.9 dB.
BXP_2: VSWR measurement (port A, Band66.A): 25.8 dB.
BXP_2: VSWR measurement (port B, Band25): 23.5 dB.
BXP_2: VSWR measurement (port B, Band66.A): 24.7 dB.
BXP_2: VSWR measurement (port C, Band25): 27.5 dB.
BXP_2: VSWR measurement (port C, Band66.A): 34.1 dB.
BXP_2: VSWR measurement (port D, Band25): 34.7 dB.
BXP_2: VSWR measurement (port D, Band66.A): 28.7 dB.
=============================================================================================
coli>/fruacc/lhsh BXP_3 fui get vswr_mb all
BXP_3: VSWR measurement (port A, Band25): 32.5 dB.
BXP_3: VSWR measurement (port A, Band66.A): 29.7 dB.
BXP_3: VSWR measurement (port B, Band25): 23.2 dB.
BXP_3: VSWR measurement (port B, Band66.A): 19.5 dB.
BXP_3: VSWR measurement (port C, Band25): 27.6 dB.
BXP_3: VSWR measurement (port C, Band66.A): 27.6 dB.
BXP_3: VSWR measurement (port D, Band25): 27.7 dB.
BXP_3: VSWR measurement (port D, Band66.A): 27.9 dB.
=============================================================================================
coli>/fruacc/lhsh BXP_4 fui get vswr_mb all
BXP_4: VSWR measurement (port A, Band25): 32.0 dB.
BXP_4: VSWR measurement (port A, Band66.A): 34.4 dB.
BXP_4: VSWR measurement (port B, Band25): 24.7 dB.
BXP_4: VSWR measurement (port B, Band66.A): 26.4 dB.
BXP_4: VSWR measurement (port C, Band25): 33.7 dB.
BXP_4: VSWR measurement (port C, Band66.A): 29.8 dB.
BXP_4: VSWR measurement (port D, Band25): 23.1 dB.
BXP_4: VSWR measurement (port D, Band66.A): 32.8 dB.
=============================================================================================
coli>/fruacc/lhsh BXP_5 fui get vswr_mb all
BXP_5: VSWR measurement (port A, Band25): 30.0 dB.
BXP_5: VSWR measurement (port A, Band66.A): 22.8 dB.
BXP_5: VSWR measurement (port B, Band25): 25.4 dB.
BXP_5: VSWR measurement (port B, Band66.A): 20.9 dB.
BXP_5: VSWR measurement (port C, Band25): 40.0 dB.
BXP_5: VSWR measurement (port C, Band66.A): 28.1 dB.
BXP_5: VSWR measurement (port D, Band25): 23.8 dB.
BXP_5: VSWR measurement (port D, Band66.A): 24.4 dB.
=============================================================================================
coli>/fruacc/lhsh BXP_6 fui get vswr_mb all
BXP_6: VSWR measurement (port A, Band25): 20.9 dB.
BXP_6: VSWR measurement (port A, Band66.A): 32.4 dB.
BXP_6: VSWR measurement (port B, Band25): 22.3 dB.
BXP_6: VSWR measurement (port B, Band66.A): 32.6 dB.
BXP_6: VSWR measurement (port C, Band25): 32.0 dB.
BXP_6: VSWR measurement (port C, Band66.A): 24.1 dB.
BXP_6: VSWR measurement (port D, Band25): 22.0 dB.
BXP_6: VSWR measurement (port D, Band66.A): 28.0 dB.
1 Like
what about the values, ??? I hear “less than 14dB is bad” what exactly mean those values obtained with lh ru fui get vswr ???
Probally this mesurments need to be turn on, do you know where can i check if we have this feature turned on. im getting reddings unknown vswr problem.
