Optimizing RSI (Root Sequence Index) Planning for Enhanced Network Performance

RAN
, ,
1

RSI (Root Sequence Index) Planning Improvement can improve several important KPIs as shown below picture.

RSI planning is very important for succeeding users to move to dedicated mode.

When RSI conflict happens, RACH preambles can not deliver messages from UE to eNB.

Setting smaller cell range when inter site distance average below 1 km is a must.

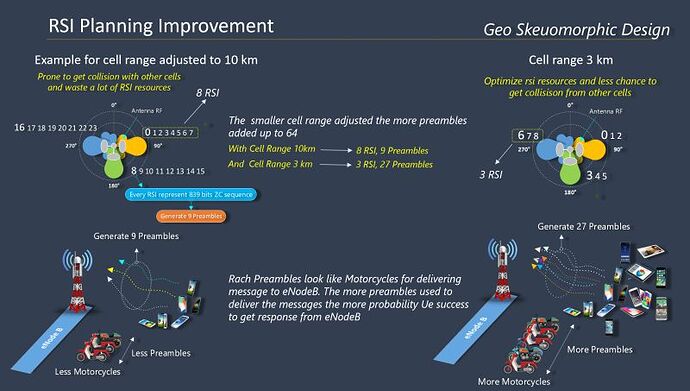

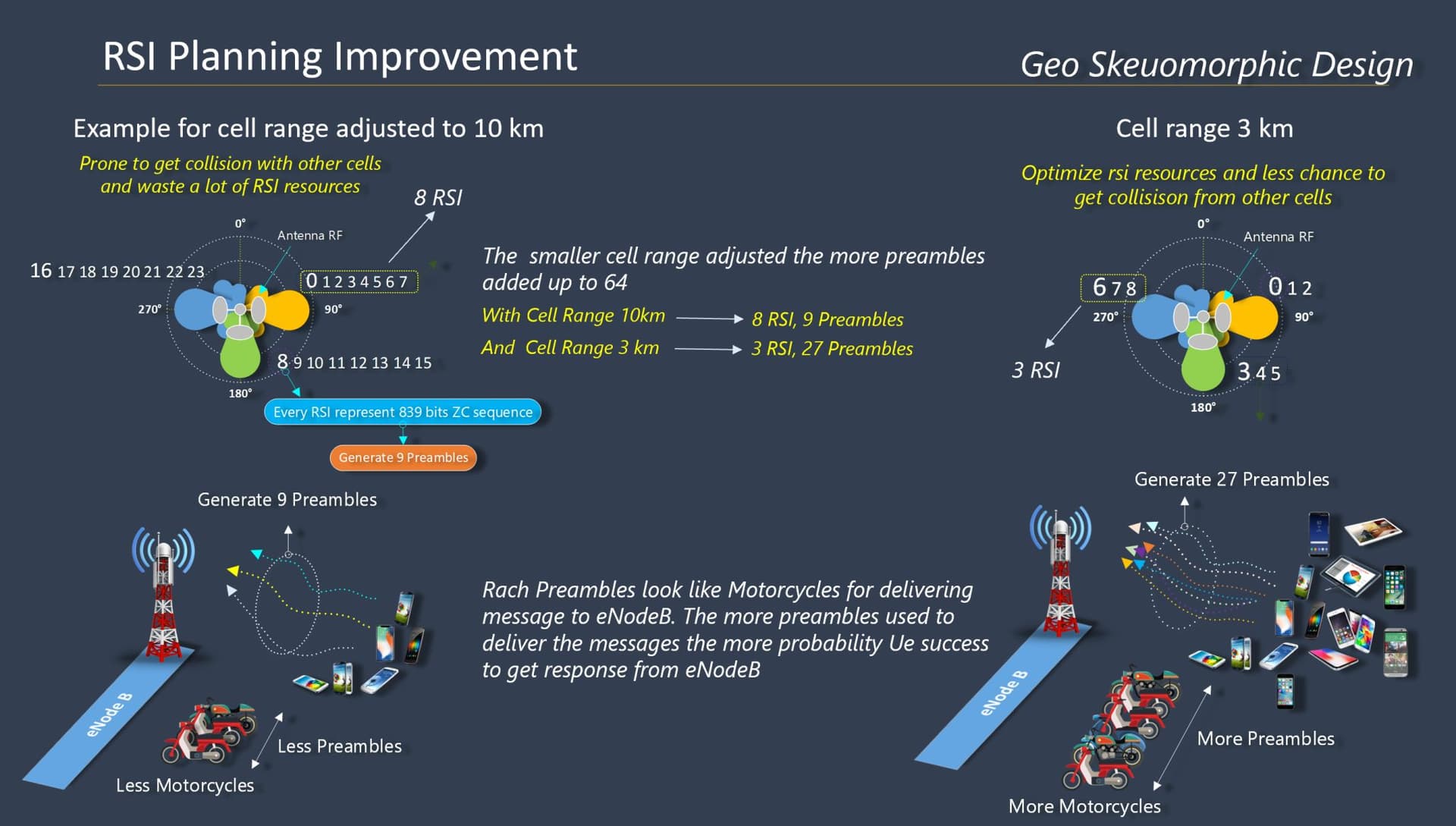

RSI Planning Improvement
RSI Planning Improvement1920Ă—1089 143 KB

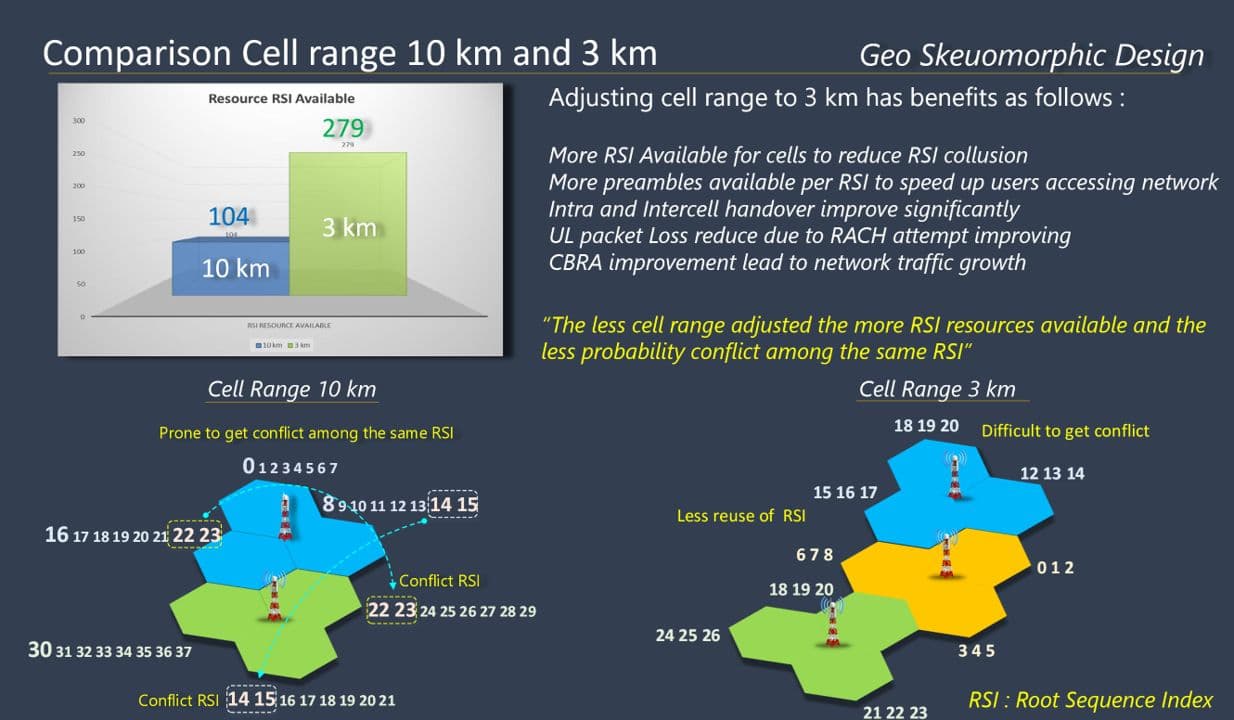

Comparison Cell Range 10 km and 3 km
Comparison Cell Range 10 km and 3 km1234Ă—720 82.5 KB

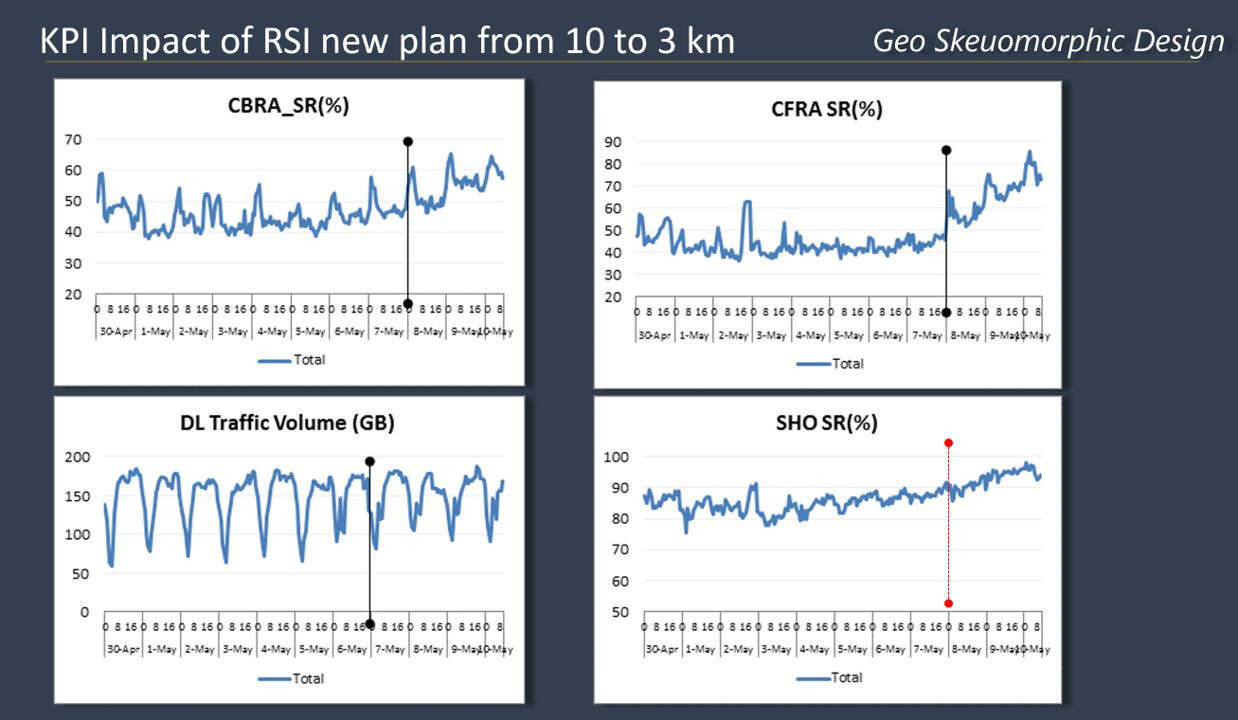

KPI Impact of RSI new plan from 10 to 3 km
KPI Impact of RSI new plan from 10 to 3 km1238Ă—720 130 KB

LinkedIn: :point_down:

2

Thanks for sharing this!

I have a question: Does “Cell Range” here refer to the configured range (such as the one seen under LST CELL in Huawei’s network), or does it refer to the actual serving cell range, which can be identified through TA?
