Open RAN: The Revolution in Mobile Network Infrastructure

In recent years, the telecommunications sector has witnessed a significant transformation in how mobile networks are designed, deployed, and managed. One of the technologies at the heart of this revolution is Open RAN (Open Radio Access Network), offering a more open and flexible approach to building mobile networks such as 4G and 5G. With Open RAN, telecom operators can disaggregate hardware and software, fostering greater interoperability among vendors and reducing costs.

What is Open RAN?

Open RAN refers to a radio access network architecture that allows for interoperability between equipment from different manufacturers. Traditionally, telecom networks have been built with proprietary equipment, where hardware and software are supplied by a single vendor. Open RAN changes this by disaggregating hardware and software and opening up interfaces between different network components.

This means that operators no longer have to rely on a single vendor for their network infrastructure. They can mix and match equipment from various suppliers and integrate everything efficiently, thanks to open APIs and interoperable standards.

Benefits of Open RAN

  1. Cost Reduction:
    One of the main drivers behind Open RAN adoption is cost reduction. By using standard commercial off-the-shelf (COTS) hardware and combining software solutions from different vendors, operators can save on network deployment and operational costs.

  2. Flexibility and Innovation:
    Open RAN enables operators to select the best components for specific functions, fostering continuous innovation and greater adaptability to new technologies. The separation of hardware and software also makes it easier to add new services and features more quickly and cost-effectively.

  3. Diversification of the Vendor Ecosystem:
    Open RAN opens the market to new vendors, promoting greater competition and technological innovation. This reduces the dominance of a few large manufacturers and gives room to startups and smaller companies bringing innovative solutions to the market.

  4. Coverage in Rural Areas:
    In regions where network coverage is limited, such as rural and low-density areas, Open RAN can be a viable and cost-effective solution. The open architecture allows for more affordable hardware, facilitating the expansion of networks to these areas at a lower cost.

Challenges and Considerations

While Open RAN offers many advantages, it also presents some challenges:

  1. Complex Integration:
    Managing a network composed of multiple vendors requires more complex and detailed integration. Operators need to ensure that the different components work together optimally. Interoperability between different vendor systems is essential but requires continuous testing and validation.

  2. Performance:
    Compared to traditional proprietary solutions, the performance of Open RAN-based networks can still be a concern. Performance optimization, especially in high-density networks, requires meticulous work to ensure that the combination of hardware and software functions ideally.

  3. Security:
    The opening up of interfaces between different components also raises security concerns. Ensuring that the various elements of the network are secure and free from vulnerabilities is an ongoing challenge for operators adopting Open RAN.

APIs and the Importance of Standardization

APIs (Application Programming Interfaces) are essential for Open RAN to function. They act as “bridges” between different network components, allowing them to communicate efficiently. In the context of Open RAN, open APIs enable operators to integrate hardware and software from different vendors, promoting interoperability and simplifying network management.

With standardized APIs, operators can use the same set of commands for equipment from different manufacturers. This simplifies network management and automation while reducing reliance on proprietary solutions.

Open RAN Success Stories

Although Open RAN is still in its early stages of adoption, several operators around the world are already implementing the technology:

  • Rakuten Mobile (Japan): Rakuten was one of the first operators to implement a mobile network entirely based on Open RAN. With a cloud-native approach and the use of open APIs, the operator significantly reduced infrastructure and operational costs.

  • Vodafone (Europe and Africa): Vodafone has been leading the implementation of Open RAN in various regions, including the UK, Germany, Spain, and Italy. The company has also expanded its use of the technology in some African markets to improve coverage in hard-to-reach areas.

  • Dish Network (United States): Dish is building a 5G mobile network in the U.S. entirely based on Open RAN. This network leverages the flexibility and innovation brought by the disaggregation of hardware and software, positioning Dish as one of the first to adopt this technology on a large scale.

The Future of Open RAN

The future of Open RAN looks promising. With the backing of major operators and standardization efforts led by organizations such as the O-RAN Alliance, the trend is expected to grow. As more operators implement Open RAN-based networks, solutions will become more mature and efficient, overcoming initial integration and performance challenges.

Moreover, the growing demand for 5G networks worldwide is driving the development of Open RAN, which could become a key component for the evolution of mobile networks, especially in scenarios requiring high flexibility and scalability.

Amdocs case study: It is available for anyone to read on their website. I’ll leave the link below. Here’s an excerpt from this case study.

Network Design and Integration

Amdocs, in collaboration with TIP and Tier-1 MNOs, completed an Indonesian University’s network design, which includes IP planning, RAN, transport, and core. For the first phase of the implementation, the lab was connected to two of the MNOs using microwave and satellite for backhaul. The lab infrastructure consisted of Open RAN-compliant equipment from vendors like Parallel Wireless, Mavenir, and Altiostar. For transport, elements from the TIP Optical Packet and Transport (OOPT) project group, such as Disaggregated Cell Site Gateway (DCSG) and Cassini (Transponder), were integrated into the topology.

image731×328 102 KB

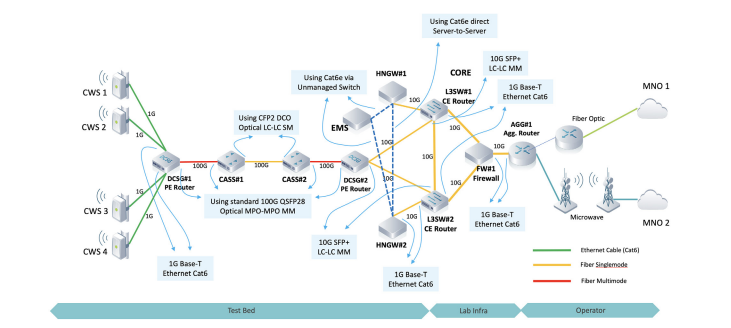

The diagram shows an Open RAN-based test network, connecting various radio base stations (CW5 and CW4) to the network core and mobile network operators (MNO 1 and MNO 2). Here’s a breakdown of the components:

  1. Radio Base Stations (CW5 and CW4):

    • These stations represent the radio access cells connected to the test network. They are connected using optical fiber cables and, in some cases, via Ethernet (1G Base-T).

  2. DCSG (Disaggregated Cell Site Gateway):

    • A Provider Edge (PE) router that acts as a connection point between the radio stations and the transport infrastructure. It uses optical links (such as CFP2 DCO and 100G QSPF28).

  3. Cassini:

    • Represents transponders (CAS1 and CAS2) integrated into the network, responsible for converting optical signals and managing data transmission through fiber optics. They are connected to managed and unmanaged switches, indicating flexibility in handling traffic from different parts of the network.

  4. Backhaul via Satellite and Microwave:

    • The diagram shows that the lab connects to mobile network operators (MNO 1 and MNO 2) using satellite and microwave links. This type of connection is common in remote locations where optical fiber infrastructure might not be available or feasible.

  5. Network Core (CORE):

    • In the core, CE (Customer Edge) routers connect the local test infrastructure to the network backbone. These routers manage the traffic between the operators and the lab, ensuring data exchange and control of the RAN systems.

  6. Firewalls and Network Aggregators:

    • Devices like AGG1 and FW11 are used to aggregate and filter data traffic before being transmitted to the core or operators. They provide security and optimization in transmission.

  7. Transport (10G SFP+ LC-LC MM):

    • The lab infrastructure uses 10G optical transport technology to connect various network elements. These high-speed links allow efficient data traffic between devices like switches and routers.

  8. Ethernet and Optical Connections:

    • The diagram shows a mix of Ethernet (1G Base-T) links and optical fiber connections, with single-mode (SM) fibers used for long distances and multimode (MM) for short distances within the lab.

Summary:

This network design demonstrates an Open RAN implementation in a test environment with various technologies and vendors, including optical transport and routing, connecting mobile operators using different backhaul technologies.

Conclusion

Open RAN represents a significant shift in how mobile networks are built and managed. With the promise of greater flexibility, cost reduction, and innovation, it offers operators the opportunity to diversify their vendor base and create more open and interoperable networks. However, its implementation also brings challenges, particularly in terms of integration and security, which will need to be addressed as the technology matures.

With pioneering operators already reaping the benefits of this approach, Open RAN is quickly becoming a reality in the telecom sector. It is only a matter of time before this technology becomes the norm in mobile networks worldwide, forever transforming telecommunications infrastructure.
