MIMO Gain formula for Ericsson 4G

Slah_Douzi · June 5, 2020, 3:00am

Hello Guys,
Please anyone can provide MIMO Gain formula for Ericsson 4G?

Mustafa_Rawat · July 17, 2020, 4:11am

I believe you mean MIMO Usage Percentage here?

Slah_Douzi · July 17, 2020, 4:12am

Yes, please.

This is what I have for MIMO GAIN:

RFSpecialist · July 17, 2020, 4:13am

This is actually MIMO rank usage percentage.

Slah_Douzi · July 17, 2020, 4:13am

Any other formula for MIMO utilisation %?

RFSpecialist · July 17, 2020, 4:14am

Massive MIMO gain is a parameter of AAU that is written in datasheet and is usually anything between 23 dB and 33 dB depending on number of elements of AAU.

Slah_Douzi · July 17, 2020, 4:15am

How to be sure your MIMO 2 by 2 is working well?
Which counter need to follow?

RFSpecialist · July 17, 2020, 4:16am

Look in the counters, you should have Rank2 percentage different than zero.
Drive test tools also have windows for MIMO where you can see layers and ports used per second.

Slah_Douzi · July 17, 2020, 5:53am

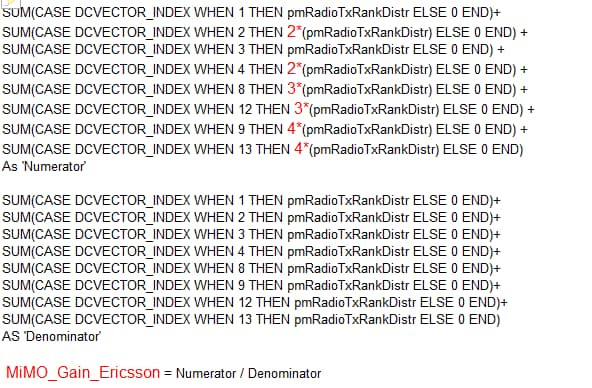

I want to share with you the final one formula I have:
