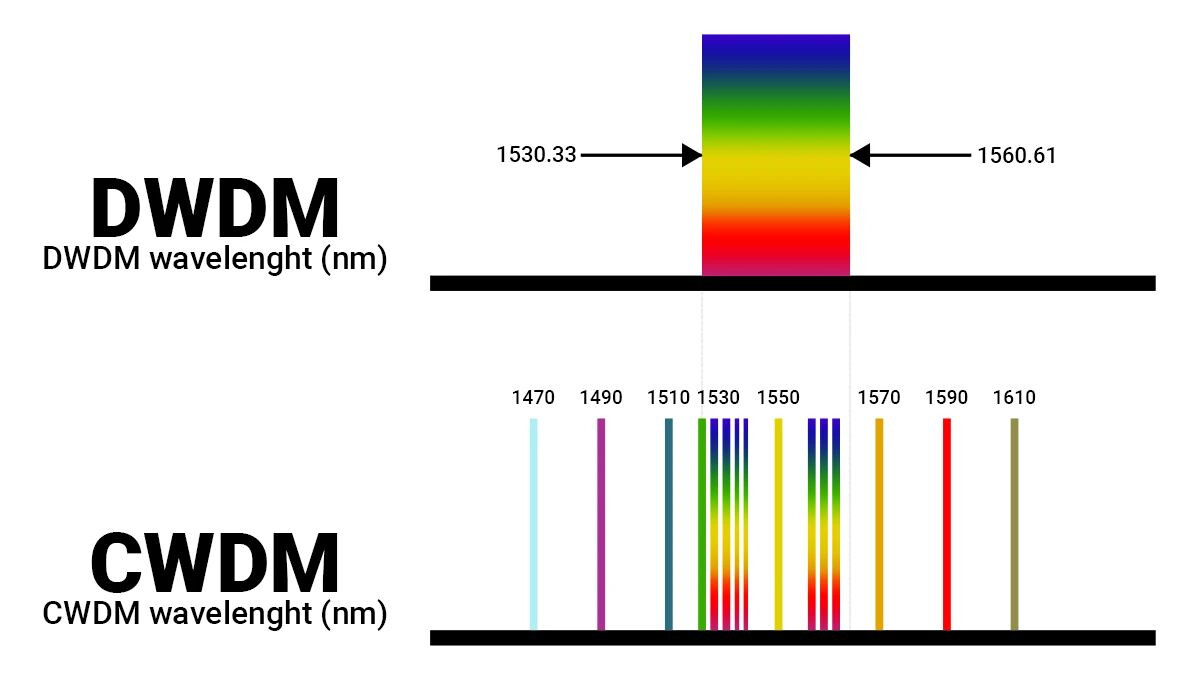

DWDM is a multipelxing technology works with optical layer (L0)
-
Used to maxImize the use of optical fiber.
-
Use transponders , multiplexers and amplifiers to allow the signal converted from colourless to colored.
-
Then multiplex alot of data streams carried by different wavelengths to be transported over single fiber cable.
-
-
OTN is a Transport protocol works with electrical layer (L1)
-
It allow the mangment , electrical layer grooming , supervision of optical signals.
-
ItSs a frame format with high capacity allow transporting the traffic up to 800 Gbps.
-
The frame contains payload and overhead.
-
The frame consists of 3 layers :
- OPU
- ODU
- OTU
-
-
SDH is a Transport protocol (lower capacity than OTN)
-
Used to transport voice and data over optical fiber.
-
Support synchronous network.
-
Can transport PDH , Ethernet and other types of protocols.
-
Support frames from stm 1 with 155 mbps capacity till stm 256 with 40 gbps capacity.
-
Commonly we use :
- stm 1 : 155 mbps
- stm 4 : 622 mbps
- stm 16 : 2.5 gbps
- stm 64 : 10 gbps
-
The frame contains payload (up to 63 E1) & overhead layers as below:
- RSOH
- MSOH
- POH
- Pointer
-
