How to check the BW supported by UE for FR1 and FR2?

Devices
1

Guys,
How to check the BW supported by UE for FR1 and FR2?

2

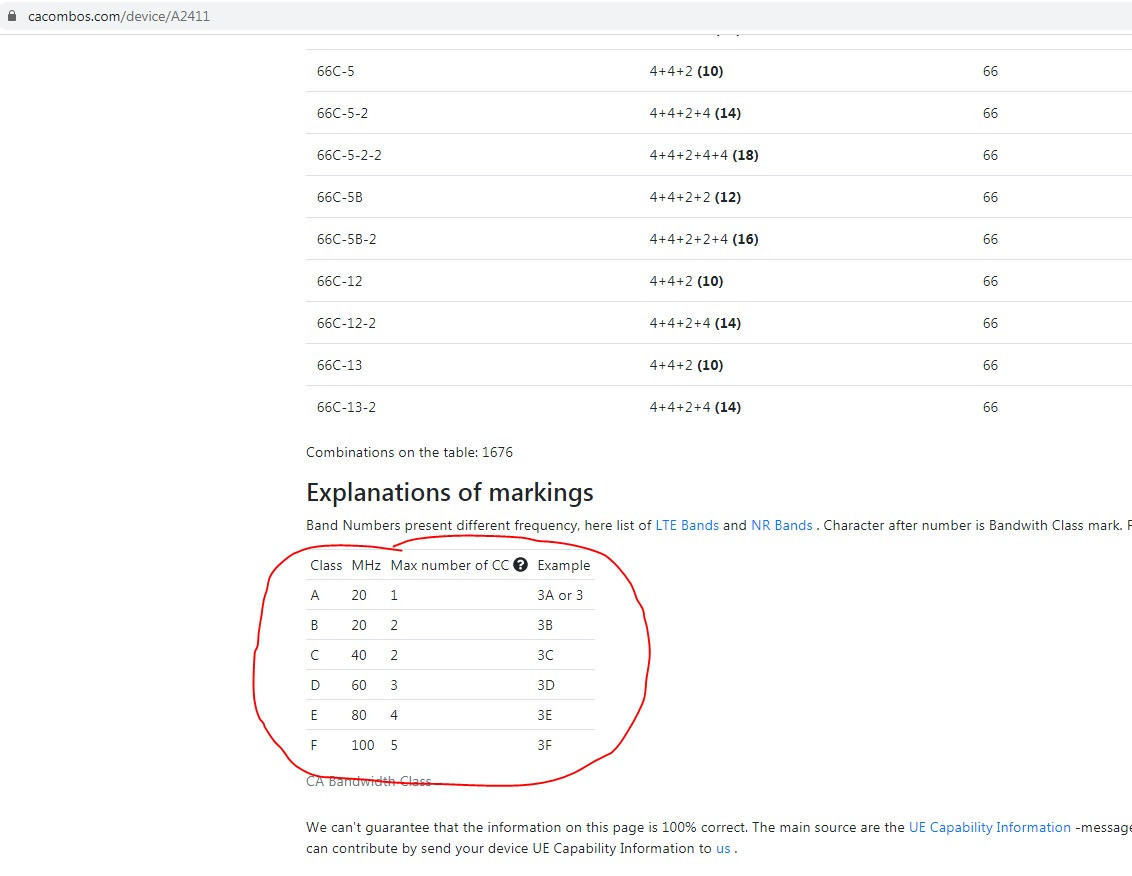

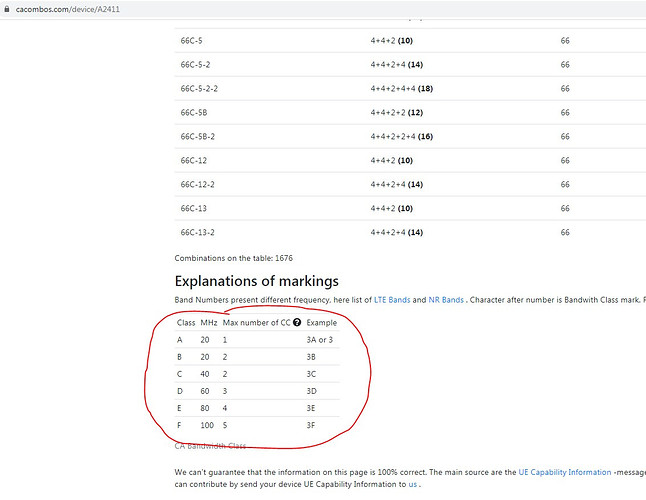

Check cacombos.com for highlighted info in red:

image1132×876 107 KB

3

Thanks.
Any idea in UE cap?
I remember we do see channel BW, but don’t remember what does the binary means…

channelBWs-DL 0111001111
channelBWs-UL 0111001111

Left to right 5 MHz 10 15 20 up to 80
100 MHz supported explicitly by all for FR1

4

Check:

https://www.sharetechnote.com/html/5G/5G_FR_Bandwidth.html

And also important:

channelBWs-DL
Indicates for each subcarrier spacing whether the UE supports channel bandwidths lower than the maximum channel bandwidth as defined in TS 38.101-1 [2] and TS 38.101-2 [3]. If this parameter is not included, the UE supports all channel bandwidths.
For FR1, the bits starting from the leading / leftmost bit indicate 5, 10, 15, 20, 25, 30, 40, 50, 60 and 80MHz. For FR2, the bits starting from the leading / leftmost bit indicate 50, 100 and 200MHz.

channelBWs-UL
Indicates for each subcarrier spacing whether the UE supports channel bandwidths lower than the maximum channel bandwidth as defined in TS 38.101-1 [2] and TS 38.101-2 [3]. If this parameter is not included, the UE supports all channel bandwidths.
For FR1, the bits starting from the leading / leftmost bit indicate 5, 10, 15, 20, 25, 30, 40, 50, 60 and 80MHz.
For FR2, the bits starting from the leading / leftmost bit indicate 50, 100 and 200MHz.

1 Like
5

70 and 90MHz support are indicated by separate IEs
