Vendor type, the shelf can be for Huawei, Nokia, ciena, infenera, ZTE or Ericsson.
-

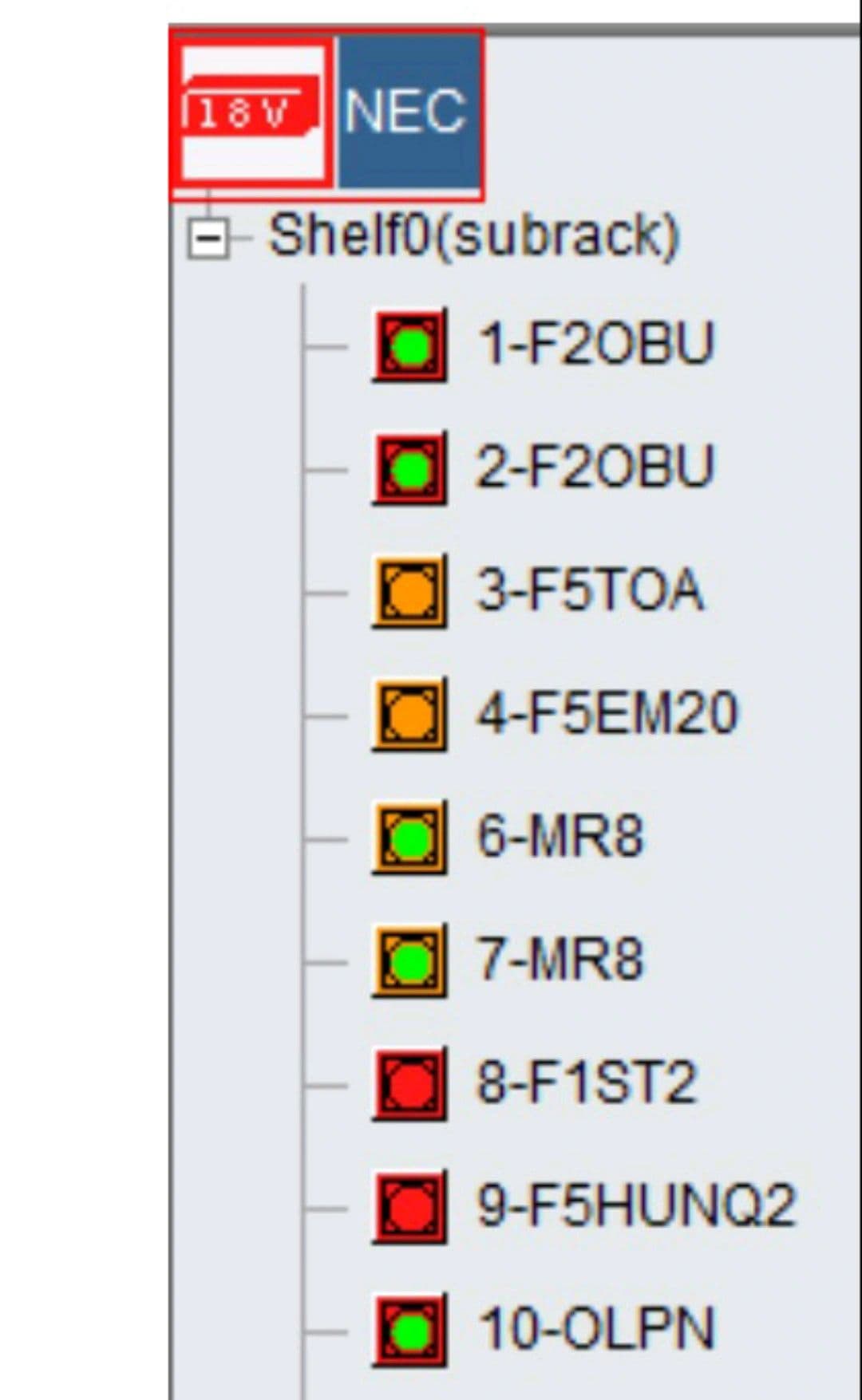

For this example it’s Huawei, type of shelf is OSN, model is OSN 1800 (18 v refer to 1800v).
-
Shelf name on NMS, in the example NEC is the name of the shelf, of course you can change it from NMS.
-
NMS is network mangment system and it’s the tool where we can manage and configure the WDM system.
-
NMS in Huawei was u2000 and now it’s NCE ( network cloud engine).
-
OBU is the amplifier boards, optical booster unit.
-
F2 and F5 is the version of the board.
-
1, 2, 3, 4,… is the slot location of the board in the subrack.
-
TOA is the client card that receive the signal from client devices and perform OTN framing ( tributary ) 8 client signals to any rate.
-
EM20 is Ethernet traffic board.
-
MR8 is the multiplexer board ( FOADM ), add & drop 8 channels of WDM.
-
ST2 is optical monitoring board support 1588v2 clocking system.
-
HUNQ2 it’s universal line board, it can support SDH, OTN and packet service.
-
OLPN is line protection board.
