FWA Basics

As we continue to bridge the digital divide, Fixed Wireless Access (FWA) has emerged as a crucial technology in providing high-speed internet access without the need for extensive wired infrastructure.

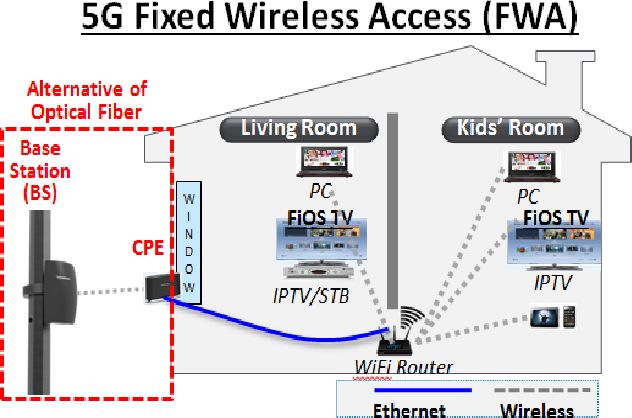

  • Key Components of FWA:

    • Base Stations: Antennas, transceivers, backhaul connectivity, power supply, enclosures, and masts.
    • Customer Premises Equipment (CPE):
      • i) Outdoor Unit (ODU): Antenna, transceiver, mounting hardware.
      • ii) Indoor Unit (IDU): Modem/router, power supply.
    • Core Network: Routers, switches, data centers, network management systems (NMS).
    • Spectrum and Frequency Management: Licensed and unlicensed spectrum.
    • Support Infrastructure: Towers, poles, power backup systems, cooling systems.
  • Frequency Range Used for FWA:

    • Specific Frequency Bands for FWA Technologies
    • 4G LTE-Based FWA: Typically operates in various bands such as 700 MHz (Band 12, 13, 17), 2.5 GHz (Band 41), and 3.5 GHz (CBRS band in the U.S.).
    • 5G-Based FWA:
      • Sub-6 GHz: Bands like 3.5 GHz (n78) and 2.6 GHz (n41) are commonly used for broader coverage and good capacity.
      • mmWave: Bands such as 28 GHz (n257) and 39 GHz (n260) provide extremely high speeds for fixed wireless connections in dense urban environments.
      • WiMAX: Earlier FWA solutions using WiMAX operated in the 2.3 GHz, 2.5 GHz, and 3.5 GHz bands.
  • Working Principle of CPE:

    • Signal Reception: Outdoor antenna receives RF signals from the base station.
    • Signal Conversion: Transceiver converts RF signals to digital data.
    • Data Transmission: Digital data is processed by the modem/router and distributed via Ethernet or Wi-Fi.
    • Return Path: User data is sent back to the base station through the transceiver.
  • Detailed Steps of CPE Operation:

    • Initial Setup and Alignment: Optimized for the best signal reception.
    • Establishing Connection: Secure connection with the base station.
    • Data Handling: Efficient downlink and uplink processes.
    • Network Management: Continuous optimization and management.
  • Types of CPE Based on Connectivity:

    • Fixed Outdoor CPE: Long-range, robust outdoor units.
    • Indoor CPE: Simple installation for short-range connections.
    • Integrated CPE: Combines ODU and IDU for easier setup.
  • Challenges and Considerations:

    • Interference and Spectrum Availability: Wireless signals can be subject to interference, and spectrum availability can be a limiting factor.
    • Weather Conditions: (e.g., heavy rain or fog) can impact signal strength and quality, especially for higher frequency bands.
    • Capacity and Speed: While FWA can provide high speeds, the capacity may be lower compared to fiber optic networks, particularly in densely populated areas
  • Advanced Features:

    • Beamforming: Enhances signal strength and data rates.
    • MIMO: Improves throughput and reliability.
    • DFS: Selects optimal frequency bands to minimize interference.

5G boosts FWA’s potential, but it’s not a new concept (existed with LTE). While wi-fi reigns supreme in speed, FWA offers faster deployment, cost-efficiency, and broader coverage for underserved areas.
