Formulas for the Intra band contiguous carrier aggregation

[Manoj_deka]

Hi Experts.

Can anyone explain the formulas for the Intra band contiguous carrier aggregation?

Admin note: this post was updated with image below.

[sadanandk2]

Its simple.

If you want to use Intra band contiguous carrier aggregation (Class C), then nominal channel spacing should be less that the values given by table 196.

If spacing is more that that, then you need to enable Intra band non-contiguous CA (Class A).

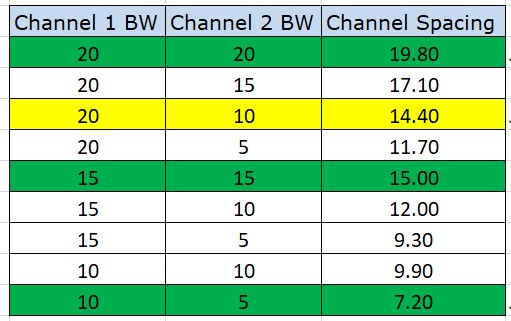

Here is table i prepare for different bandwidth combinations.

[Manoj_deka]

If I have 40 MHz spectrum for B40… from 2320 to 2360, can I have Continuous CA?

What is the requirement for contiguous CA?

What does the channel spacing means here?

[sadanandk2]

Requirement I already mentioned above:

@sadanandk2

channel spacing should be less that the values given by table

Channel spacing mean difference in center frequencies of 2 carrier.

Below is example (19.8 MHz):
