Difference between RSSI and RTWP

Ramanuj_Singh · June 29, 2020, 3:00am

Hello Experts.

Can you please help us to understand RSSI and RTWP difference?

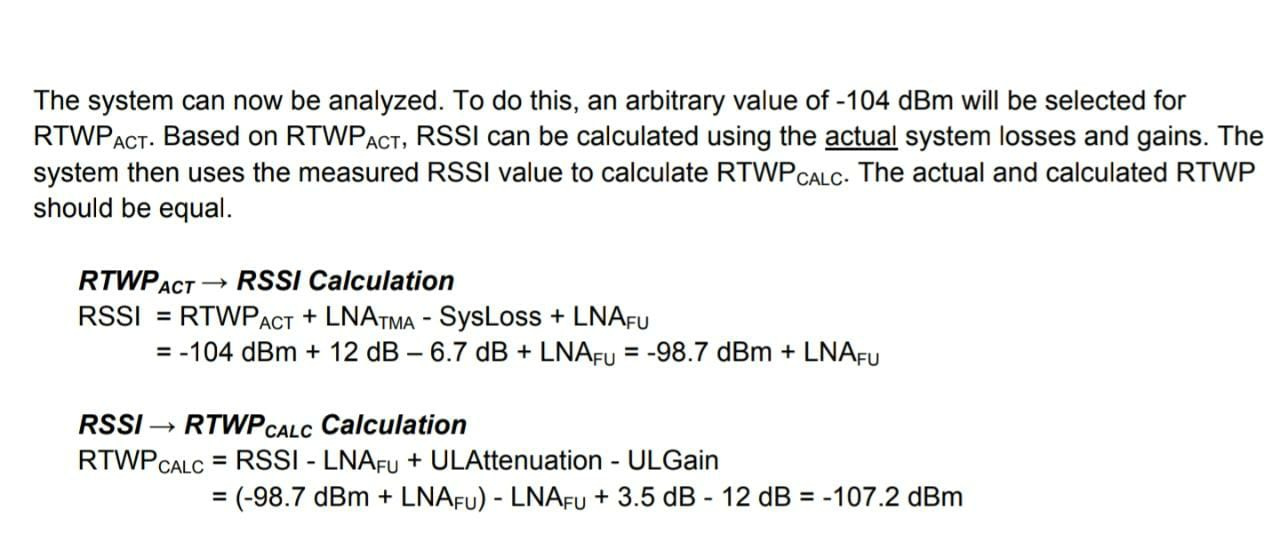

Admin note: this post was updated with image below.

Sanjay.Singraur · July 17, 2020, 6:29am

Hello,

Sharing knowledge for RTWP:
LTE RTWP / UL Interfrence is very important to improve Accessibility, Retainability & Integrity KPI.

Watch the video to understand it causes and solutions to keep network out of trouble.

Parwaan · July 17, 2020, 6:30am

Same question but addition how it relate with MIMO.

Sanjay.Singraur · July 17, 2020, 6:30am

RSSI counter is used in Ericsson and RTWP in Nokia.
For Huawei, i haven’t work but i saw a picture where both terms are used.

parkarnadeem86 · July 17, 2020, 6:32am

This will impact drop and throughput its alarm needs to be solved.
Hardware alarm.

Sourav_Chandra · July 17, 2020, 6:33am

In ericsson system too we are getting RSSI readings by mfi command or noise tool & getting RTWP by running cabx command.

parkarnadeem86 · July 17, 2020, 6:34am

Internal interf
Better to resolve hardware
Chk dspvswr too

Sourav_Chandra · July 17, 2020, 6:34am

javiersapon · July 17, 2020, 6:35am

That’s a difference in the received power between the ports in the RRU.
You need to check por connectors, the readings should be the same on all sector ports.

Matt34 · March 9, 2021, 9:42am

What is the difference between RSSI measurement and RTWP measurement (Ericsson) in LTE?

RTWP is calculated for each antenna , if you check counters for KPI it includes all PRB’s.
RSSI counters for both PUSCH and PUCCH includes calculations noise from -92 through -121

I tried to understand the way they calculated? Why measurements are between -92 and -121? And how they get this value? Is it from PUSCH and PUCCH Reference Signals (UL)?

Thanks
