When we think about mobility optimization in LTE and 5G networks, we often focus on signal strength, handovers, and coverage. However, one of the most powerful tools available to network engineers is Cell Individual Offset (CIO).
CIO helps operators influence how a User Equipment (UE) perceives neighboring cells, enabling smarter mobility decisions and better network performance.

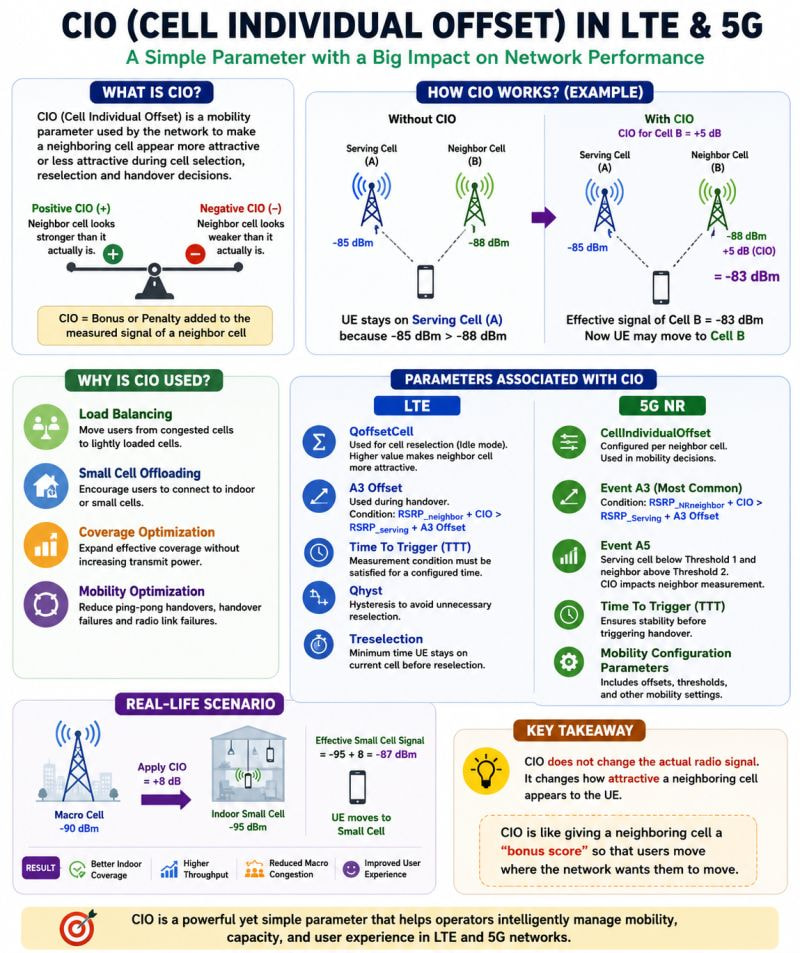

What is CIO?
Cell Individual Offset (CIO) is a mobility parameter that adds a bonus or penalty to a neighboring cell’s measured signal level.
This allows the network to make a neighboring cell appear:
- More attractive (Positive CIO)
- Less attractive (Negative CIO)
Even though the actual radio signal remains unchanged.
Simple Example
A UE measures:
- Serving Cell = -85 dBm
- Neighbor Cell = -88 dBm
Normally, the UE remains connected to the Serving Cell because it has the stronger signal.
Now, suppose the Neighbor Cell is configured with:
CIO = +5 dB
The UE effectively sees:
- Neighbor Cell = -83 dBm
As a result, the Neighbor Cell becomes more attractive, and the UE may move to it.
The signal didn’t change — only the UE’s decision-making process did.
Why is CIO Important?
- Load Balancing
Distributes users from congested cells to less-loaded neighboring cells.
- Small Cell Offloading
Encourages users to connect to indoor or small cells, improving network capacity.
- Mobility Optimization
Helps reduce:
- Ping-Pong Handovers
- Handover Failures
- Radio Link Failures (RLF)
- Coverage Enhancement
Extends a cell’s effective coverage area without increasing transmit power.
Key Parameters Associated with CIO
LTE
- QoffsetCell
- A3 Offset
- Time-To-Trigger (TTT)
- Qhyst
- Treselection
5G NR
- CellIndividualOffset
- Event A3
- Event A5
- Time-To-Trigger (TTT)
- Mobility Configuration Parameters
Real-World Use Case
Consider a shopping mall deployment:
- Macro Cell = -90 dBm
- Indoor Small Cell = -95 dBm
Without CIO:
- Users stay connected to the Macro Cell.
With CIO = +8 dB:
- Effective Small Cell Measurement = -87 dBm
- Users move to the Indoor Small Cell.
Benefits:
- Better Indoor Coverage
- Higher Throughput
- Reduced Macro Cell Congestion
- Improved User Experience
Key Takeaway
CIO does not improve the actual radio signal.
Instead, it intelligently influences mobility decisions, helping operators optimize coverage, capacity, and user experience.
