Check if 4G cell has MIMO via parameters

4G LTE
,
1

Hi All,
Is there any way to now if a 4G cell has MIMO configured and working (has license) by checking parameter values?
Vendor E//.

If yes, please mention which parameters should be checked?
Thanks in advance

2

You can check rank counter.

3

Would you please specify little bit more what do you mean by rank counter?
Thanks.

4

First check the feature is enabled for MIMO. You can login to node and just enter => invl MIMO via moshell.
Than check noOfTxAntenna/noOfRxAntenna which should be 2x2 or 4x4 MIMO based on ur network configuration.
Also Check transmissionmode parameter.
Then check Rank distribution for MIMO Counter: pmRadioTxRankDistr.
Check RI plot from field test. Values ranges from 1 to 4. Samples showing 3 and 4 are good.
Note:when 4x4 MIMO deployed in network, significant DL thpt improvement is expected as compare to 4x2 or 2x2 MIMO configurations.

1 Like
5

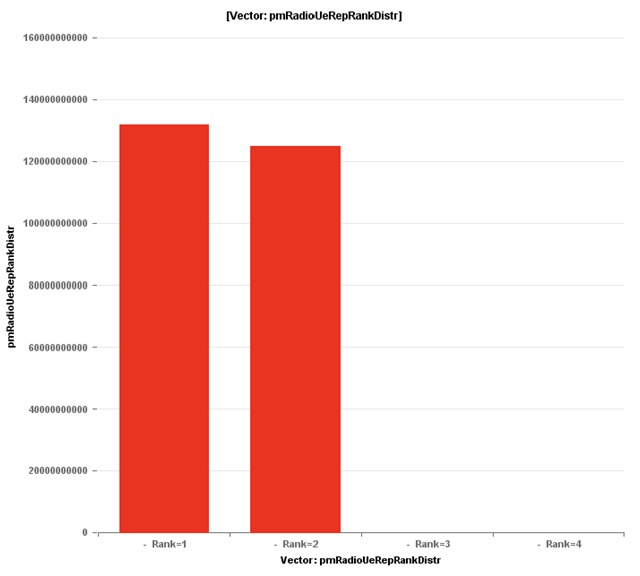

Just check this counterL: pmRadioUeRepRankDistr.
If you have samples in Rank2 and onwards, MIMO is working.

image640×576 41.1 KB

6

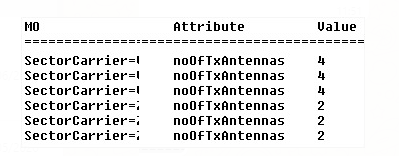

For Ericsson system you can see noOfTxAntennas parameters (from SectorCarrier MO).


For Huawei system you can check via TXRXMODE Parameter (from CELL MO).
