In 5G NR, physical channels and reference signals enable seamless communication between the User Equipment (UE) and the gNodeB (base station). They carry everything from raw user data to critical control information, ensuring efficient, reliable wireless connectivity.
Downlink Channels & Signals
PDCCH (Physical Downlink Control Channel):
Carries scheduling grants (Downlink Control Information)
Uses CORESET resources & aggregation levels for reliable decoding
PDSCH (Physical Downlink Shared Channel):
Main data carrier for user data & higher-layer signaling
Supports dynamic modulation (QPSK to 256QAM) and MIMO layers
Employs HARQ retransmissions for reliability
Downlink Reference Signals:
DM-RS (Demodulation RS): Channel estimation for decoding PDCCH/PDSCH
PT-RS (Phase Tracking RS): Corrects phase noise at high frequencies
CSI-RS (Channel State Information RS): Enables beamforming and link adaptation
Uplink Channels & Signals
PUCCH (Physical Uplink Control Channel):
Carries uplink control info like HARQ feedback, CSI reports, scheduling requests
Supports flexible resource formats
PUSCH (Physical Uplink Shared Channel):
Primary uplink data channel, including user data and UCI multiplexing
Supports adaptive modulation and coding
Uplink Reference Signals:
DM-RS: Channel estimation for uplink data/control channels
SRS (Sounding RS): Used for uplink beamforming and scheduling

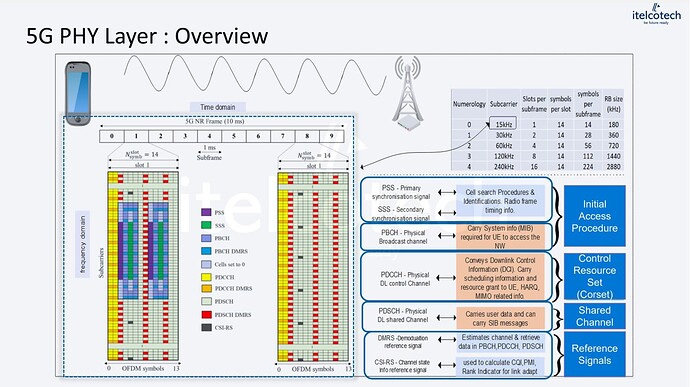

Why Different Channels in Downlink?
PSS & SSS: For initial cell search, sync, and Physical Cell ID
PBCH: Broadcasts essential system info (MIB) for UE to start decoding
PDCCH: Carries dynamic control info, decoded first for scheduling
PDSCH: Main data channel carrying user and signaling data
Reference Signals — Vital for Reliable Data
DMRS: UE-specific, mapped with PDSCH, enables accurate data demodulation
CSI-RS: Enables channel quality measurement, beam management, and mobility
Without these signals, accurate decoding and adaptive performance wouldn’t be possible - they’re critical for 5G’s reliability and efficiency.
5G NR’s flexible channel and reference signal design is a cornerstone of its ability to serve diverse applications - from massive IoT to ultra-reliable low latency communications.
