5G C-RAN (Centralized RAN): Data Radio Bearers (DRBs) and QoS Flows

5G NR
, , ,
1

Hi All.

  • In 5G C-RAN, the gNB-CU-CP decides flow-to-DRB mapping and sends the generated SDAP and PDCP configuration using E1AP (BEARER CONTEXT SETUP/ MODIFICATION REQUEST message) to the gNB-CU-UP.

  • F1AP UE context setup procedure is performed to setup one or more Data Radio Bearers (DRBs) in the gNB-DU.

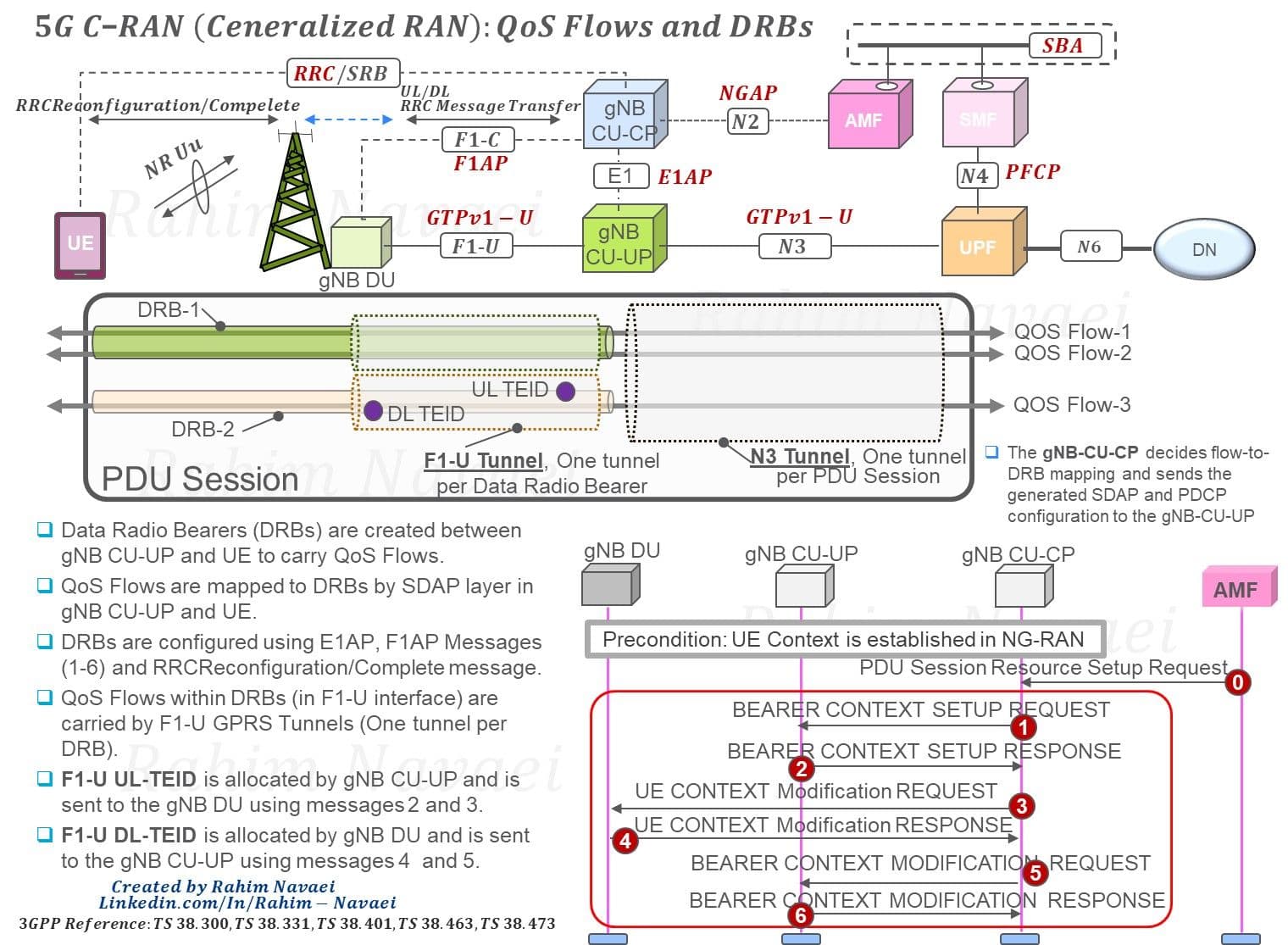

  • Here I try to depict how QoS Flows are carried by DRBs via F1-U GPRS tunnels between gNB CU-UP and gNB DU.

5G C-RAN (Centralized RAN): Data Radio Bearers (DRBs) and QoS Flows
5G C-RAN (Centralized RAN): Data Radio Bearers (DRBs) and QoS Flows1520×1115 189 KB
