4G/5G Formulas for BO

RAN
,
1

Hello,

Does anyone have a list of 4G and 5G formulas for BO?
I also need the formula for UL RSSI per PRB.

Many thanks in advance!

UL RSSI for 100 PRBs
UL RSSI for 100 PRBs1920×1080 117 KB

2

What is BO?

3

Business Object. A reporting and analytics tool used for network performance monitoring.

I checked it already. The given formula is for UL RSSI, and not the UL RSSI per PRB.

4

There are counters with UL interference per PRB in Huawei.

Avg and Max. Have a look:

L.UL.Interference.Avg.PRB0
L.UL.Interference.Avg.PRB1
L.UL.Interference.Avg.PRB2
L.UL.Interference.Avg.PRB3
L.UL.Interference.Avg.PRB4
L.UL.Interference.Avg.PRB5
L.UL.Interference.Avg.PRB6
L.UL.Interference.Avg.PRB7
L.UL.Interference.Avg.PRB8
L.UL.Interference.Avg.PRB9
L.UL.Interference.Avg.PRB10
L.UL.Interference.Avg.PRB11
L.UL.Interference.Avg.PRB12
L.UL.Interference.Avg.PRB13
L.UL.Interference.Avg.PRB14
L.UL.Interference.Avg.PRB15
L.UL.Interference.Avg.PRB16
L.UL.Interference.Avg.PRB17
L.UL.Interference.Avg.PRB18
L.UL.Interference.Avg.PRB19
L.UL.Interference.Avg.PRB20
L.UL.Interference.Avg.PRB21
L.UL.Interference.Avg.PRB22
L.UL.Interference.Avg.PRB23
L.UL.Interference.Avg.PRB24
L.UL.Interference.Avg.PRB25
L.UL.Interference.Avg.PRB26
L.UL.Interference.Avg.PRB27
L.UL.Interference.Avg.PRB28
L.UL.Interference.Avg.PRB29
L.UL.Interference.Avg.PRB30
L.UL.Interference.Avg.PRB31
L.UL.Interference.Avg.PRB32
L.UL.Interference.Avg.PRB33
L.UL.Interference.Avg.PRB34
L.UL.Interference.Avg.PRB35
L.UL.Interference.Avg.PRB36
L.UL.Interference.Avg.PRB37
L.UL.Interference.Avg.PRB38
L.UL.Interference.Avg.PRB39
L.UL.Interference.Avg.PRB40
L.UL.Interference.Avg.PRB41
L.UL.Interference.Avg.PRB42
L.UL.Interference.Avg.PRB43
L.UL.Interference.Avg.PRB44
L.UL.Interference.Avg.PRB45
L.UL.Interference.Avg.PRB46
L.UL.Interference.Avg.PRB47
L.UL.Interference.Avg.PRB48
L.UL.Interference.Avg.PRB49
L.UL.Interference.Avg.PRB50
L.UL.Interference.Avg.PRB51
L.UL.Interference.Avg.PRB52
L.UL.Interference.Avg.PRB53
L.UL.Interference.Avg.PRB54
L.UL.Interference.Avg.PRB55
L.UL.Interference.Avg.PRB56
L.UL.Interference.Avg.PRB57
L.UL.Interference.Avg.PRB58
L.UL.Interference.Avg.PRB59
L.UL.Interference.Avg.PRB60
L.UL.Interference.Avg.PRB61
L.UL.Interference.Avg.PRB62
L.UL.Interference.Avg.PRB63
L.UL.Interference.Avg.PRB64
L.UL.Interference.Avg.PRB65
L.UL.Interference.Avg.PRB66
L.UL.Interference.Avg.PRB67
L.UL.Interference.Avg.PRB68
L.UL.Interference.Avg.PRB69
L.UL.Interference.Avg.PRB70
L.UL.Interference.Avg.PRB71
L.UL.Interference.Avg.PRB72
L.UL.Interference.Avg.PRB73
L.UL.Interference.Avg.PRB74
L.UL.Interference.Avg.PRB75
L.UL.Interference.Avg.PRB76
L.UL.Interference.Avg.PRB77
L.UL.Interference.Avg.PRB78
L.UL.Interference.Avg.PRB79
L.UL.Interference.Avg.PRB80
L.UL.Interference.Avg.PRB81
L.UL.Interference.Avg.PRB82
L.UL.Interference.Avg.PRB83
L.UL.Interference.Avg.PRB84
L.UL.Interference.Avg.PRB85
L.UL.Interference.Avg.PRB86
L.UL.Interference.Avg.PRB87
L.UL.Interference.Avg.PRB88
L.UL.Interference.Avg.PRB89
L.UL.Interference.Avg.PRB90
L.UL.Interference.Avg.PRB91
L.UL.Interference.Avg.PRB92
L.UL.Interference.Avg.PRB93
L.UL.Interference.Avg.PRB94
L.UL.Interference.Avg.PRB95
L.UL.Interference.Avg.PRB96
L.UL.Interference.Avg.PRB97
L.UL.Interference.Avg.PRB98
L.UL.Interference.Avg.PRB99
L.UL.Interference.Max.PRB0
L.UL.Interference.Max.PRB1
L.UL.Interference.Max.PRB2
L.UL.Interference.Max.PRB3
L.UL.Interference.Max.PRB4
L.UL.Interference.Max.PRB5
L.UL.Interference.Max.PRB6
L.UL.Interference.Max.PRB7
L.UL.Interference.Max.PRB8
L.UL.Interference.Max.PRB9
L.UL.Interference.Max.PRB10
L.UL.Interference.Max.PRB11
L.UL.Interference.Max.PRB12
L.UL.Interference.Max.PRB13
L.UL.Interference.Max.PRB14
L.UL.Interference.Max.PRB15
L.UL.Interference.Max.PRB16
L.UL.Interference.Max.PRB17
L.UL.Interference.Max.PRB18
L.UL.Interference.Max.PRB19
L.UL.Interference.Max.PRB20
L.UL.Interference.Max.PRB21
L.UL.Interference.Max.PRB22
5

It is Ericsson, and I was able to generate the BO report and obtain results.

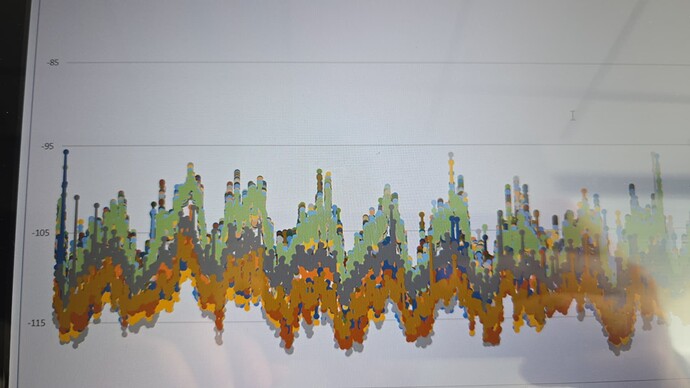

UL RSSI for 100 PRBs:

UL RSSI for 100 PRBs
UL RSSI for 100 PRBs1920×1080 117 KB

6

Legend please?

7

I believe the X-axis represents PRB, while the Y-axis shows RSSI in dBm.

Each color corresponds to a value per ROP.

8

Yes, exactly.

9

However, these values are highly influenced by P0 nominal PUSCH.

I would also expect more of a straight horizontal line rather than the zig-zags seen in your picture.
