Calculate SS block frequency position based on GSCN

5G NR
1

Hello Experts.

Can anyone explain how to calculate SS block frequency position based on GSCN?

I have found 2 equations for the same - the first one is SSREF = 3000 MHz + N * 1.44 MHz and the second one is SSREF = 2400 MHz + N * 1.44 MHz.

Does this equation have any relation with the Duplex mode used by the respective band?

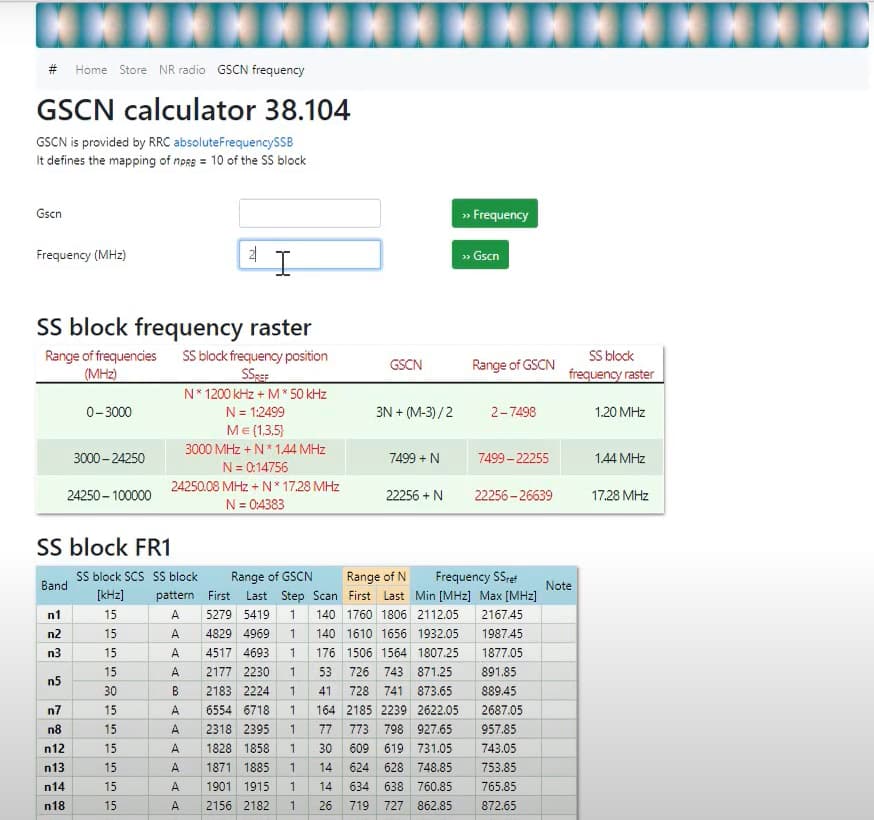

Admin note: this post was updated with image below.

Calculate SS block frequency position based on GSCN
Calculate SS block frequency position based on GSCN874×820 67 KB

2

HI Elisa, I think the equation SSREF = 2400 MHz + N * 1.44 MHz is for Time domain duplex.

3

Note: The language of the video is Arabic, but it has English subtitles.

Youtube: https://www.youtube.com/watch?v=Nqro_UKmbbY&list=LLx4vbjQIm08vIyS5ed049KQ&index=7

4

In this specific case, the 3 GHz threshold is applicable to FDD operating bands. The threshold is reduced to 2.4 GHz for TDD operating bands. ·This increases the number of TDD operating bands which can use 8 SS/PBCH Blocks.

Reference - 5G NR in Bullets.
