I need 5g call flow diagram for STANDALONE

  1. Cell search
  2. Call initial access
  3. Random access
  4. Rrc procedures
  5. Handover ( intra, inter frequency)
  6. Pdu sessions

Admin note: this post was updated with image below.

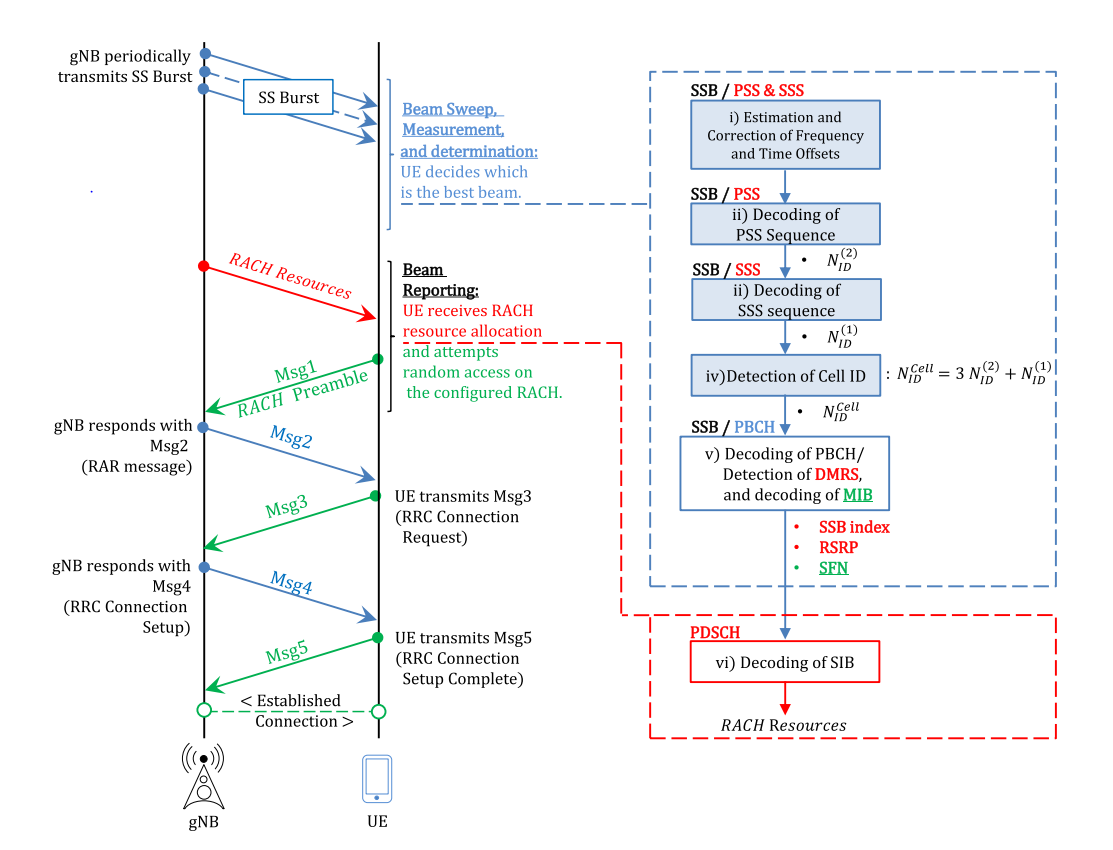

5g call flow diagram
5g call flow diagram1075×781 80.3 KB

1 Like
2

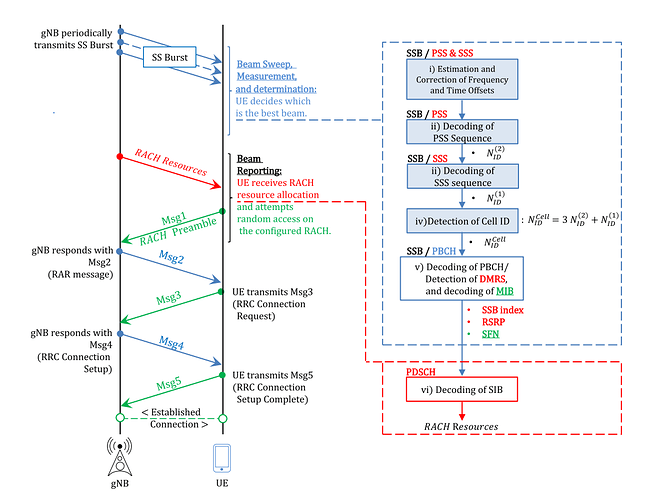

  1. Cell search
  2. Random access
  3. Call initial access
  4. Rrc procedures

image1113×850 142 KB

  1. Handover ( intra, inter frequency)

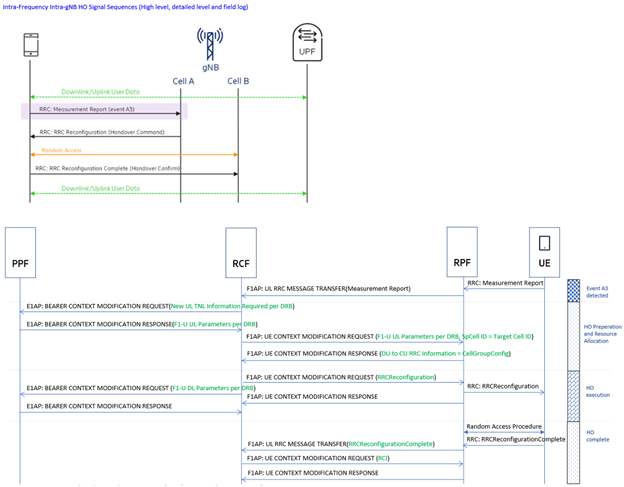

    1. Intra freq Inter gNB HO flow in detail
    image624×804 77.2 KB

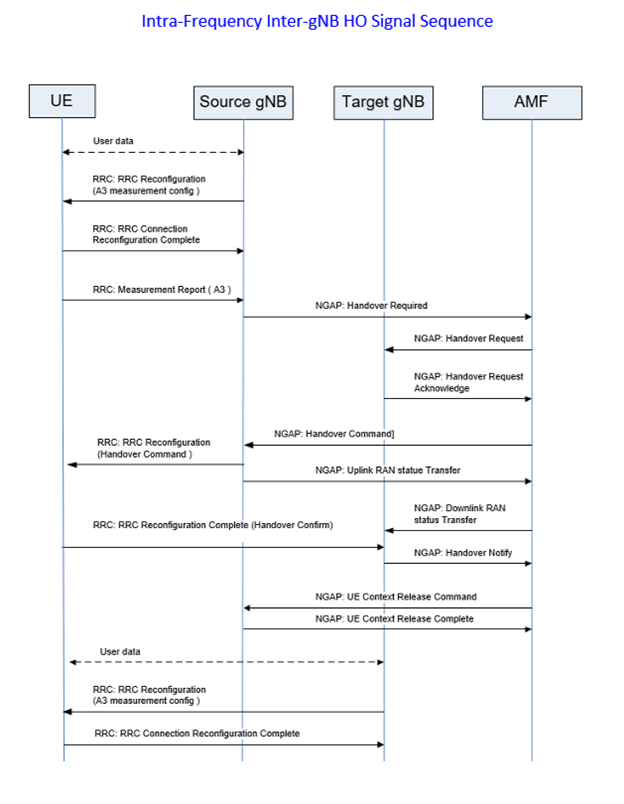

    2. Intra freq Inter gNB HO flow in detail
  2. Pdu sessions
2 Likes
3

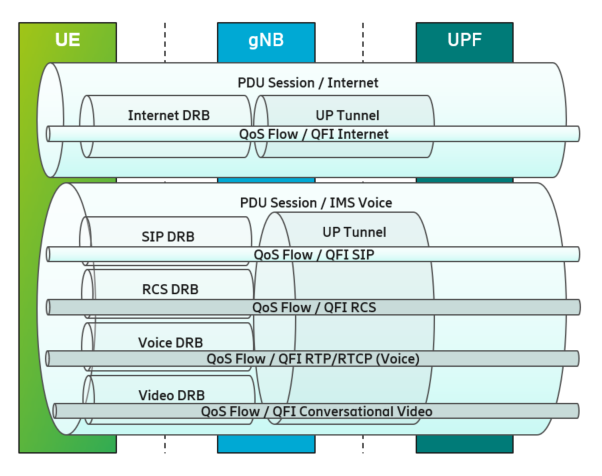

Thanks ameen… In 5G DRB type is same as 4G . Since 5G Qos flow is used what are the types of DRB in 5G

1 Like
4

Anyone having detailed 5G call flow?

1 Like
5

Yes there is on Eventhelix → just check Favs.

1 Like
6

For eventhelix we have to click on every message one by one to check for important IE’s.

I was specifically looking for a doc with important IE’s on every message.

1 Like
7
