Issue with getting service in GSM network


#1

Hello

I have a GSM network, which has all the local settings ok 3 CDUs and 3 DTRUs one in each

Adding 3 sectors

TX is ok if alarms are synchronized.

The service does not go up and the DXU does not exit the local mode.

What can I do to get the service up and out locally?


#2

No alarms at all???


#3

Sorry alarm local mode
in all TRXs

<RXASP:MO=RXOTG-77;

RADIO X-CEIVER ADMINISTRATION

MANAGED OBJECT ALARM SITUATIONS

MO SCGR SC RSITE ALARM SITUATION

RXOTG-77 GSRM1

RXOCF-77 GSRM1 LOCAL MODE

RXOTRX-77-0 GSRM1 LOCAL MODE

RXOTRX-77-1 GSRM1 LOCAL MODE

RXOTRX-77-4 GSRM1 LOCAL MODE

RXOTRX-77-5 GSRM1 LOCAL MODE

RXOTRX-77-8 GSRM1 LOCAL MODE

RXOTRX-77-9 GSRM1 LOCAL MODE

END

<RXMFP:MO=RXOTG-77,SUBORD,FAULTY;

RADIO X-CEIVER ADMINISTRATION

MANAGED OBJECT FAULT INFORMATION

NONE

END

Local technician has already tried to withdraw the local mode, but to no avail.


#4

You can get a DXU that is working and then u compare the config

Does the DXU light show local or operational


#5

Local. I suspected DXU, but the local technician relocated the same DXU on another site and it worked, and the configurations were tested and passed on ok.


#6

So can’t take the DXU on the working site test on the site with a problem?


#7

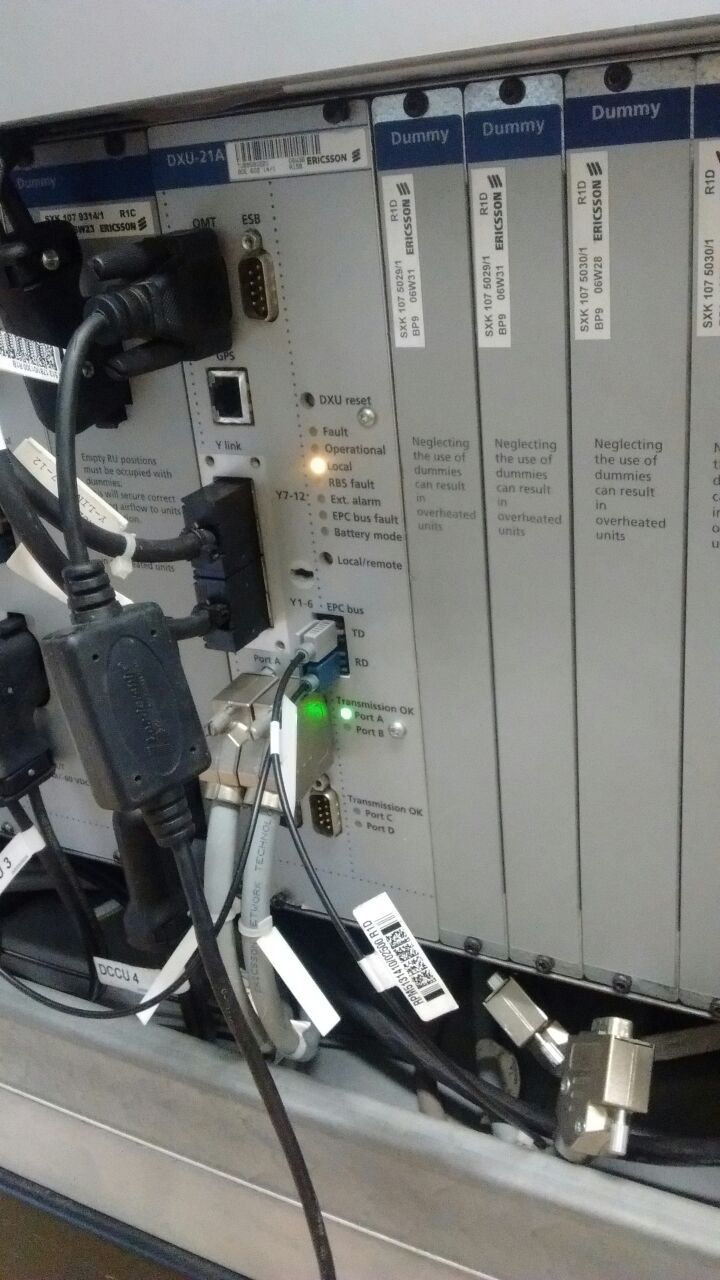

#8

Led blinking
Code EC1 4


#9

Is the light not stable yet?


#10

No. It may be faulty!


#11

Share alarms again

Fault No. SO CF EC1:4
Fault name L/R SWI (BTS in local mode)
Description The DXU is in local mode and cannot be controlled by the BSC.
Action Either use the OMT, or press the Local/Remote button to bring the DXU into
Remote mode.


#12

Hi, Any luck yet ???


#13

Yes, no luck. I’m checking to see if the is faulty so that I can change it
